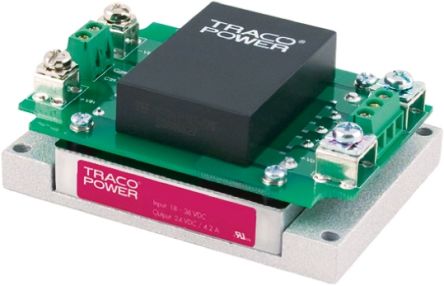

TRACOPOWER TEP 200-4815WIRCMF 直流/直流转换器 隔离式板载, 医用, 固定、可调节, 1输出, 16.5 V, 75 V, 216 W, 24 V
Traco 180-240W Chassis Mount Railway Compliant DC-DC Converter - TEP-200WIR Ser
180-240W single output isolated PCB mount DC-DC converters with a wide 4:1 input voltage range, adjustable output voltage and a high efficiency of up to 91% allowing full power operation without forced air cooling at 25°C. These railway compliant isolated DC-DC converters are chassis mount with a screw terminal block and have an integrated EMI filter to meet EN 55022 class A.
Wide 4:1 input voltage range
Integrated EMI filter to EN 55022, class A
Adjustable output voltage
EN 50155 approval for railway applications
High efficiency
No minumum load
Soft start
Sense line
Remote On/Off input
Reverse input voltage, overtemperature, short circuit and over voltage protection
EMC compliance: EN 55022 class A without external components
### 注
A DIN rail mounting kit is available, see stock number 745-1102
MTBF to MIL-HDBK-217F, at +25°C
Derating approx. 1.2 %/K above +25°C see datasheet
### 标准
EN 50155, UL 60950-1, IEC/EN 60950-1
额定功率 216 W
输出接口数 1
输出电压 24 VDC
输出电流 9 A
输出功率 216 W
隔离电压 2.25 kVDC
输入电压Max 75 V
输入电压Min 18 V
输入电压DC Max 75 V
输入电压DC Min 16.5 v
输出电流Max 9 A
输出功率Max 216 W
输入电压 48 VDC
安装方式 Chassis
长度 85 mm
宽度 61 mm
高度 33.8 mm
重量 240 g
工作温度 40℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业），铁路, 自动化与过程控制, 工业, 电源管理, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
