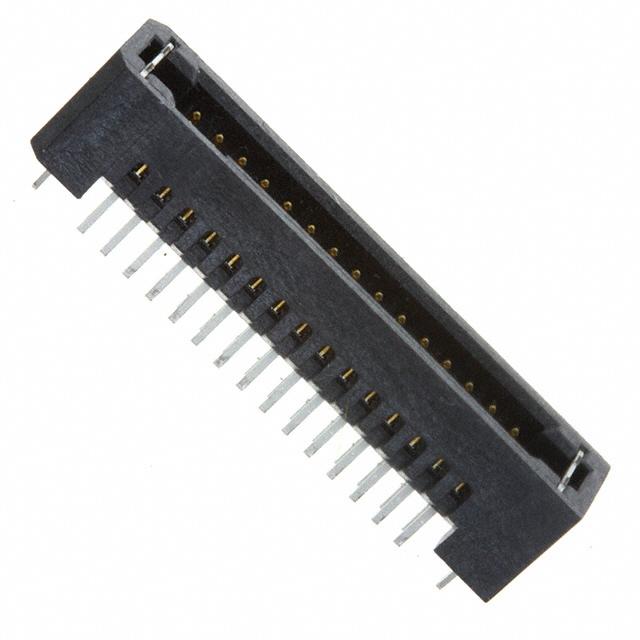

SAMTEC TFM-115-01-S-D-WT Board-To-Board Connector, 1.27mm, 30Contacts, Header, TFM Series, Through Hole, 2Rows
Connector Header Through Hole 30 position 0.050" 1.27mm
欧时:
.050" Tiger Eye High-Reliability Termina
得捷:
CONN HEADER VERT 30POS 1.27MM
艾睿:
Mount this shrouded TFM-115-01-S-D-WT header connector from Samtec on a jumper post on your PCB to support physical configuration options. This HDR connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. It has a header type gender. It has a straight body orientation. This is a 2-row connector. Its pitch is 1.27 mm. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TFM-115-01-S-D-WT is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 22.23 mm long, 5.59 mm tall and 5.72 mm deep.
安富利:
Conn Shrouded Header HDR 30 POS 1.27mm Solder ST Thru-Hole Tube
Verical:
Conn Shrouded Header 4 Sides HDR 30 POS 1.27mm Solder ST Top Entry Thru-Hole TIGER EYE™ Tube
Newark:
# SAMTEC TFM-115-01-S-D-WT Board-To-Board Connector, 1.27 mm, 30 Contacts, Header, TFM Series, Through Hole, 2 Rows
触点数 30
极性 Male
触点电镀 Gold
额定电压AC 350 V
额定电流 2.9A/触头
排数 2
针脚数 30
额定电流Max 3.2A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 275 VAC
安装方式 Through Hole
高度 5.59 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
