TST-105-01-T-D

SAMTEC TST-105-01-T-D Wire-To-Board Connector, 2.54mm, 10Contacts, Header, TST Series, Through Hole, 2Rows

Connector Header Through Hole 10 position 0.100" 2.54mm

得捷:
CONN HEADER 10POS .100" T/H TIN

艾睿:

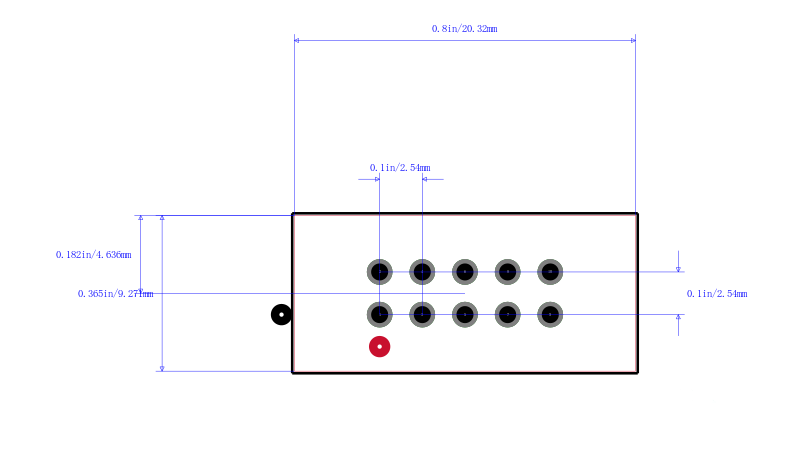

Use this shrouded TST-105-01-T-D connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 3.4 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. TST-105-01-T-D is housed in black polyester. This product is 20.32 mm long, 9.27 mm tall and 9.27 mm deep. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  TST-105-01-T-D  Wire-To-Board Connector, 2.54 mm, 10 Contacts, Header, TST Series, Through Hole, 2 Rows
