TEKTRONIX TDS3LIM 测试模块, 限值
Limit Testing Module
** TDS3000B Series Digital Phosphor Oscilloscopes Adapt to Wide-Ranging Video Measurement Needs
A Tell-All Tool for Video Troubleshooting:- .
- *
Many video engineers have remained loyal to analog oscilloscopes, believing the gradations on an analog display are the only way to see certain video waveform details. The TDS3000B has the same information-rich display as an analog oscilloscope, but with much more detail. DPO technology provides a live display that captures anomalies while providing the intensity-graded vision you need to interpret the waveform. Both patterns and one-time events are easy to see and understand. With up to 500 MHz bandwidth and four inputs, the TDS3000B family provides ample performance for analog and digital video use. The TDS3000B is compact and light enough to meet field requirements as well as design and evaluation needs on the engineering bench. Two optional video modules add easy-to-use, video-specific measurement and display tools to the TDS3000B DPO series.

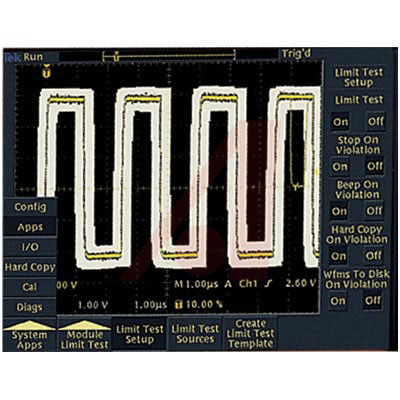

This module offers fast, simple verification that your circuit is operating within its intended parameters — ideal for repetitive testing applications where Go/No-go decisions are required. You can easily create waveform reference templates to compare to your live waveforms. You can also compare any number of input channels with any combination of four references, and select actions for the TDS300B oscilloscope to take if a waveform strays outside the reference limits; stop acquisition, sound a beep, print a hardcopy, or save the waveform to disk.
This limit testing module offers fast, accurate Go/No Go verification that tested circuits are operating within intended parameters.
