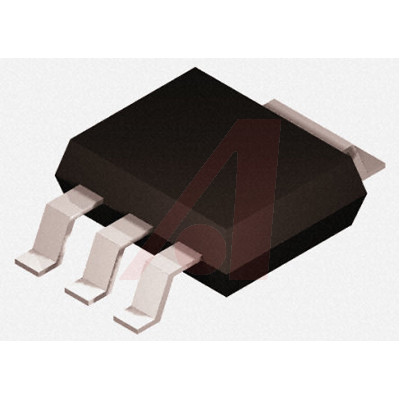

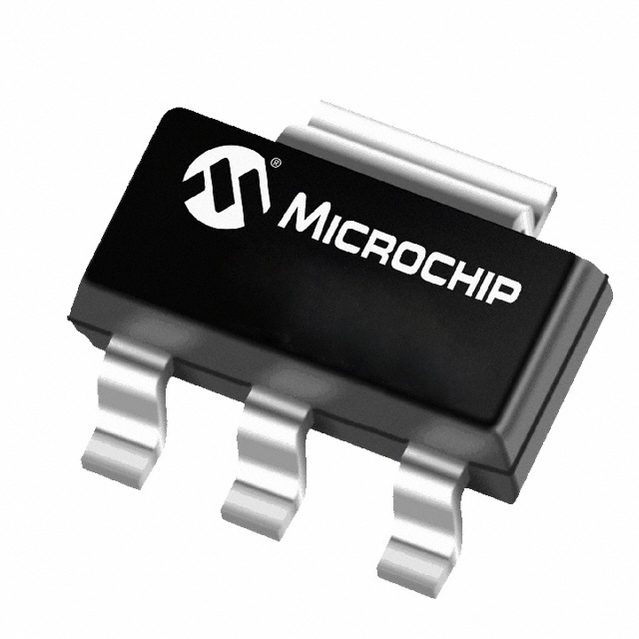

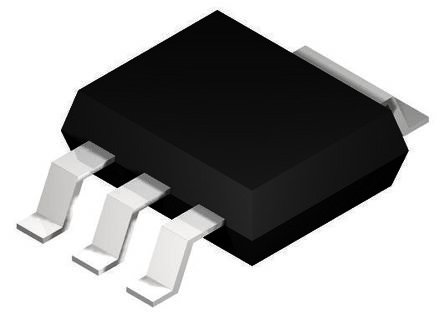

TC1264-1.8VDB

TC1164 Low Dropout Voltage Regulator### LDO（低压降）线性稳压器，Microchip

General Description

The TC1264 is a fixed output, high accuracy typically ±0.5% CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1264’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80µA at full load 20 to 60 times lower than in bipolar regulators.

Features

• Very Low Dropout Voltage

• 800mA Output Current

• High Output Voltage Accuracy

• Standard or Custom Output Voltages

• Over Current and Over Temperature Protection

Applications

• Battery Operated Systems

• Portable Computers

• Medical Instruments

• Instrumentation

• Cellular/GSM/PHS Phones

• Linear Post-Regulators for SMPS

• Pagers
