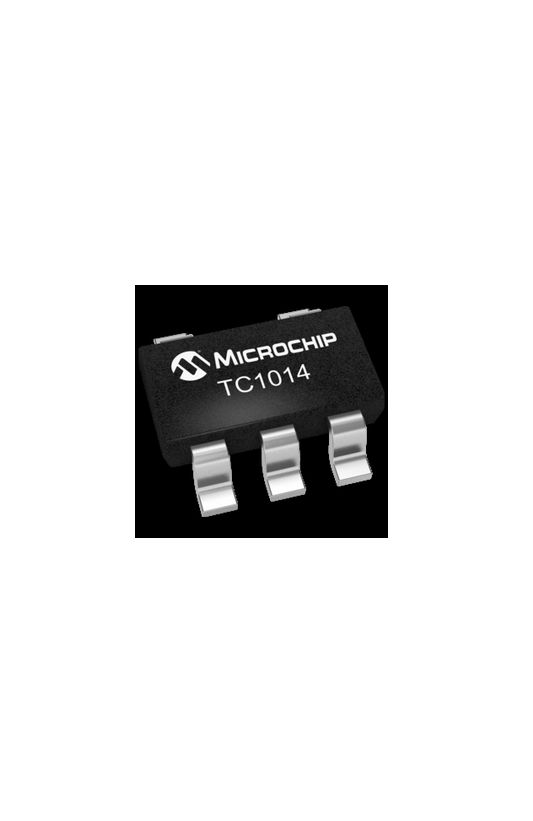

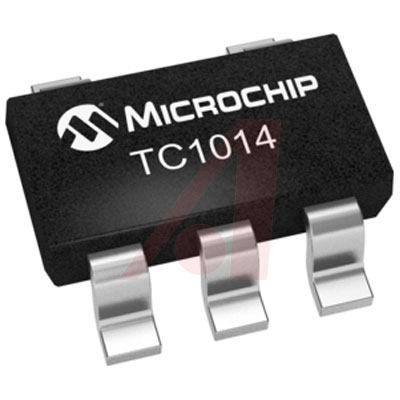

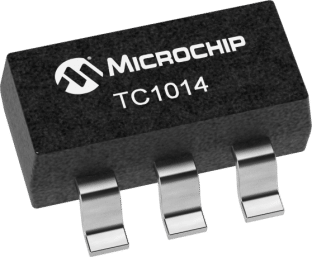

TC1014 低压降电压稳压器
TC1014 低压降电压稳压器
### LDO(低压降)线性稳压器,
得捷:
IC REG LINEAR 1.8V 50MA SOT23-5
立创商城:
TC1014-1.8VCT713
欧时:
Microchip TC1014-1.8VCT713 LDO 稳压器, 1.8 V输出, 50mA最大输出, ±2.5%精确度, 2.7 → 6 V输入
艾睿:
This LDO TC1014-1.8VCT713 linear regulator developed by Microchip Technology keeps the power stable! It has an overall accuracy of ±0.5 %. Its typical dropout voltage at current is 0.002@100uA|0.065@20mA|0.085@50mA V. This voltage regulation device&s;s single output can produce a current up to 0.05Min A. This will operate at a minimum voltage of 2.7 V and a maximum voltage of 6 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.8 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 0.5%Typ and line regulation of 0.05%Typ. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive. The maximum dropout voltage is 0.12@50mA V.
Allied Electronics:
Regulator, 1.8V 50mA LDO with Shutdown & V Ref Bypass, SOT-23-5
安富利:
LDO Regulator Pos 1.8V 0.05A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.8V 0.05A Automotive 5-Pin SOT-23 T/R
Newark:
# MICROCHIP TC1014-1.8VCT713 Fixed LDO Voltage Regulator, 2.7V to 6V In, 85mV Dropout, 1.8V/50mA Out, SOT-23-5
Win Source:
Linear Voltage Regulator IC Positive Fixed 1 Output 1.8V 50mA SOT-23-5
电源电压DC 2.70V min
输出接口数 1
输入电压DC 2.70V min
输出电压 1.8 V
输出电流 50 mA
供电电流 80 μA
耗散功率 318 mW
静态电流 50.0 µA
输出电容类型 Tantalum
跌落电压 85 mV
输入电压Max 6 V
输入电压Min 2.7 V
输出电流Max 50 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±0.5 %
输入电压 2.7V ~ 6V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
长度 3.1 mm
宽度 1.8 mm
高度 1.3 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
