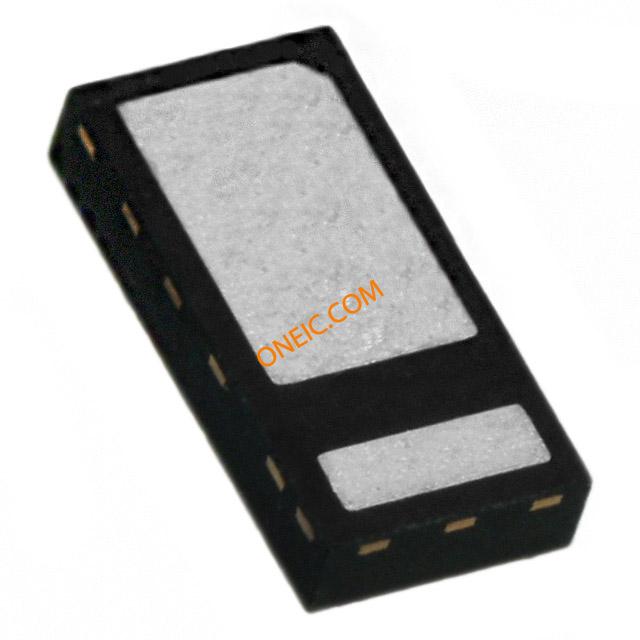

Bourns TBU High Speed Circuit Protector, KE Series
The TBU-KE series of Bourns TBU are low capacitance unidirectional high speed surge protectors designed to
protect against faults caused by short circuits, induction and lightning surges and AC power cross.These TBU circuit protectors will trip in less than 1 μs when the current reaches the maximum value in one direction. The TBU KE series circuit protector blocks sudden surges in voltage or current and provides a barrier behind which electronics will not be exposed to damage. Post surge, the TBU device resets when the voltage across the TBU device falls to the Vreset level. Typical applications include Ethernet ports, protection modules, dongles and process control equipment.
Superior circuit protection
Overcurrent and overvoltage protection
Blocks surges up to rated limits
High speed performance
Small SMT package
Operating temperature range -40°C → +85°C
### 注
Maximum voltage shown is peak impulse voltage withstand with a duration of no more than 10ms.
### 认可
UL E315805
额定电压DC 250 V
工作电压 250 V
额定电流 500 mA
输出电流 750 mA
电路数 1
静态电流 0.5 mA
钳位电压 500 V
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 10
封装 DFN-2
长度 5 mm
宽度 2.5 mm
高度 0.85 mm
封装 DFN-2
工作温度 -40℃ ~ 85℃
产品生命周期 New Technology: Cutting edge technology for the newest designs.
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2013/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TBU-KE050-500-WH Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
TBU-DT065-500-WH 伯恩斯 | 功能相似 | TBU-KE050-500-WH和TBU-DT065-500-WH的区别 |
