TAP2500

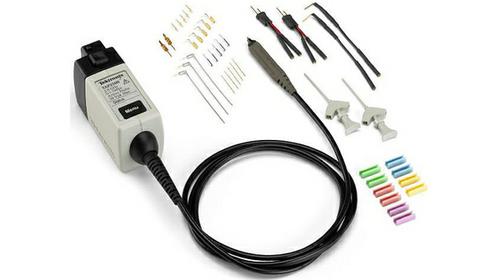

TEKTRONIX  TAP2500  示波器探头, 2.5 GHz, 有源, 30 V, 10:1, Tektronix TekVPI Probe Interface Oscilloscopes

The is a Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today"s digital system designs. It is an easy access to oscilloscope probe menu display for probe status/diagnostic information and to control probe DC offset. It provides truer signal reproduction and fidelity for high-frequency measurements. It is specifically designed for use and direct connection to oscilloscopes with the TekVPI™ probe interface, the TAP2500 active FET probes achieve high-speed signal acquisition and measurement fidelity by solving three traditional problems they are lower DUT loading effects with <=0.8pF input capacitance and 40kR input resistance, versatile DUT connectivity for attaching to small SMDs and preserves instrument bandwidth at the probe tip for up to 3.5GHz oscilloscopes.

.

High probe bandwidth

.

Fast probe rise time

.

Excellent signal fidelity

.

Small compact probe head for probing small geometry circuit elements

.

Robust design for reliability

.

Connects directly to oscilloscopes with the TekVPI™ probe interface

.

Provides automatic units scaling and readout on the oscilloscope display

.

Remote GPIB/USB probe control through the oscilloscope
