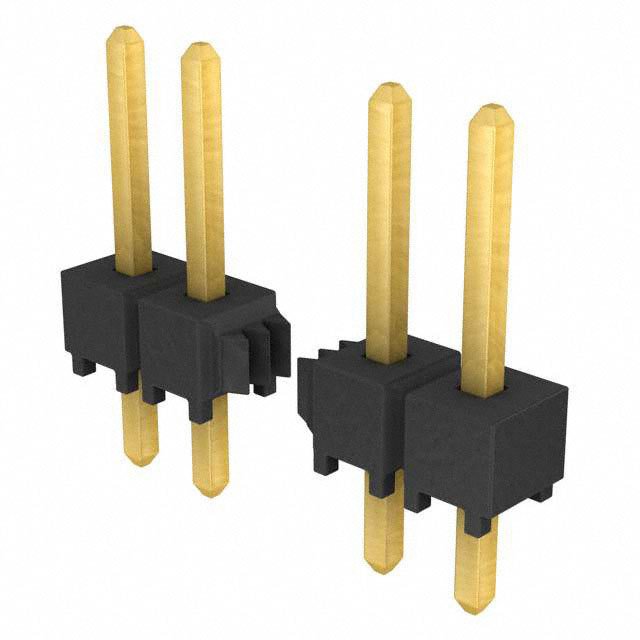

TSW-113-23-G-S

2.54mm 方针

针座 通孔 13 位置 0.100"（2.54mm）

立创商城:
2.54mm 方针

得捷:
CONN HEADER VERT 13POS 2.54MM

艾睿:
Mounting this unshrouded TSW-113-23-G-S header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 13 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 550 VAC. This is a 1-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-113-23-G-S is housed in black polyester. This product is 33.02 mm long, 8.38 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Newark:
# SAMTEC  TSW-113-23-G-S  Board-To-Board Connector, 2.54 mm, 13 Contacts, Header, TSW Series, Through Hole, 1 Rows
