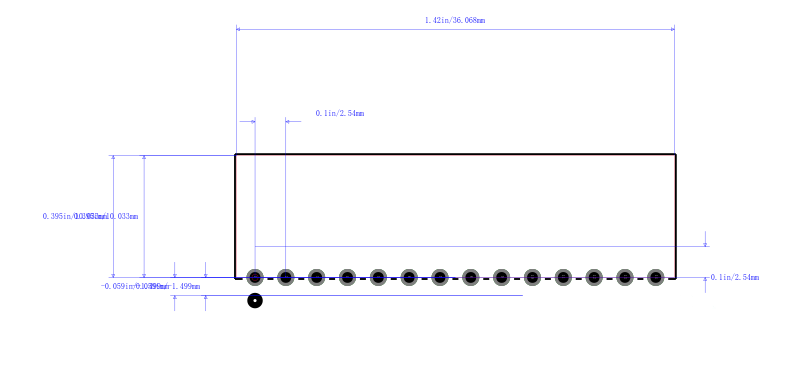

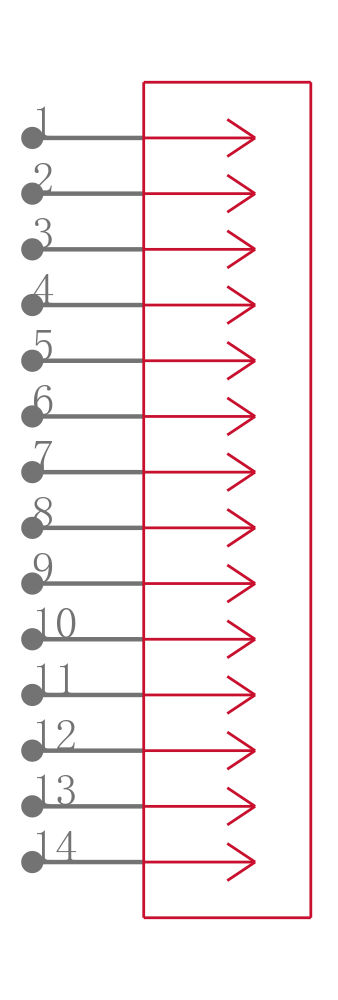

TSW-114-08-F-S-RA

2.54mm 方针

针座 位置

得捷:
CONN HDR T/H .025" SQUARE P

立创商城:
2.54mm 方针

艾睿:
Use this unshrouded TSW-114-08-F-S-RA header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a maximum voltage rating of 450 VAC. This is a 1-row connector. Its pitch is 2.54 mm. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-114-08-F-S-RA is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 35.56 mm long, 3.02 mm tall and 9.9 mm deep.

安富利:
Conn Unshrouded Header HDR 14 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-114-08-F-S-RA  Board-To-Board Connector, 2.54 mm, 14 Contacts, Header, TSW Series, Through Hole, 1 Rows
