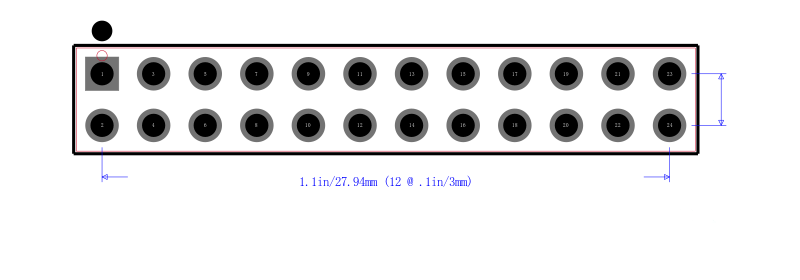

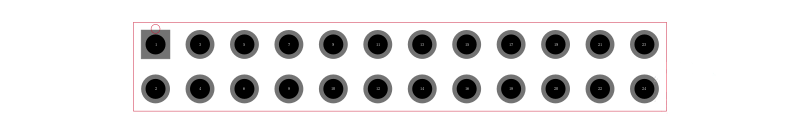

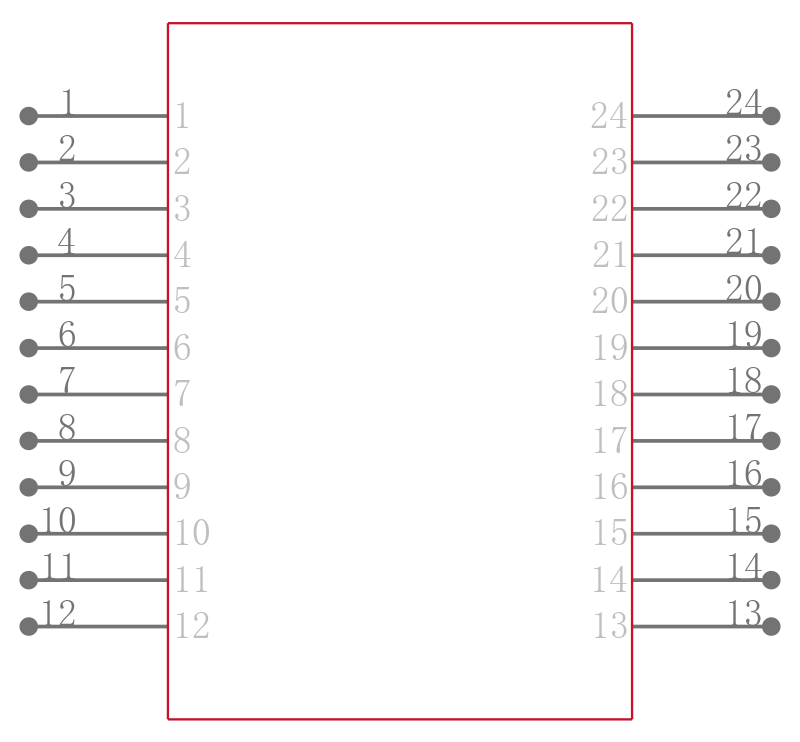

TSW-112-07-F-D

SAMTEC TSW-112-07-F-D Board-To-Board Connector, 2.54mm, 24Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 24 位置 0.100"（2.54mm）

欧时:
.100" Terminal Strip

得捷:
CONN HEADER VERT 24POS 2.54MM

艾睿:
Use this unshrouded TSW-112-07-F-D header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 24 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product is 30.48 mm long, 8.38 mm tall and 5.08 mm deep. It uses the solder termination method. TSW-112-07-F-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Unshrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 24 POS 2.54mm Solder ST Top Entry Thru-Hole Bag

Newark:
# SAMTEC  TSW-112-07-F-D  Board-To-Board Connector, 2.54 mm, 24 Contacts, Header, TSW Series, Through Hole, 2 Rows
