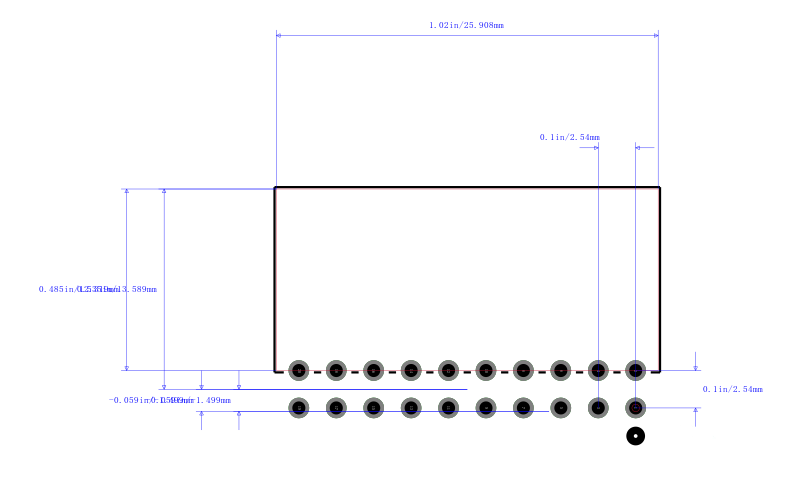

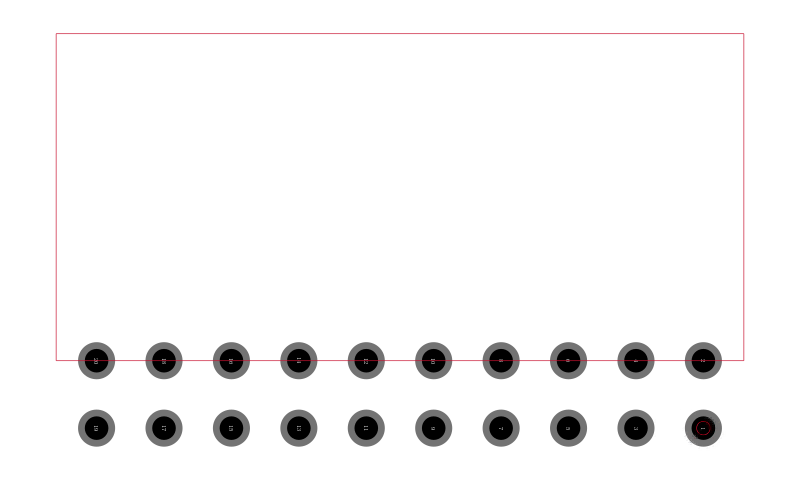

TSW-110-25-F-D-RA

2.54mm 方针

针座 通孔，直角 20 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 20POS 2.54MM

欧时:
through-hole hdr strips for 0.100 pit

立创商城:
2.54mm 方针

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this unshrouded TSW-110-25-F-D-RA header connector from Samtec. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This product is 25.4 mm long, 5.56 mm tall and 14.73 mm deep. This connector has an operating temperature of -55 to 125 °C. TSW-110-25-F-D-RA is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 20 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-110-25-F-D-RA  Board-To-Board Connector, 2.54 mm, 20 Contacts, Header, TSW Series, Through Hole, 2 Rows
