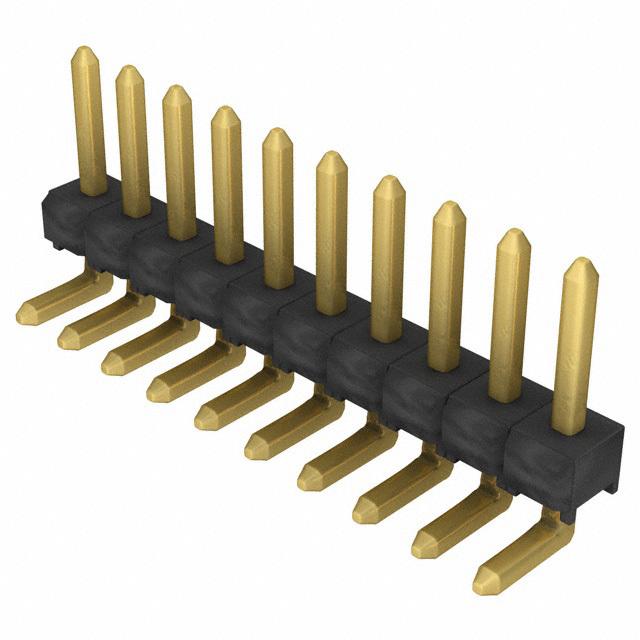

TSW-110-08-G-S-RA

板至板连接, 2.54 mm, 10 触点, 针座, TSW Series, 通孔安装, 1 排

The TSW series from are standard terminal strip headers. These are unshrouded through hole headers with 0.025" 0.635mm square post and mates with Samtec SSW, SSQ, SSM, ESW, ESQ, BCS, BSW, CES, SLW, IDSD, IDSS, SMSD and SMSS series of connectors. TSW series connectors are available with industry"s largest variety of standard pin counts, terminal lengths and are used where signal integrity and reliability is of major concern.

.

可选择1排/2排/3排 -S/-D/-T/-Q选项

.

2.54mm间距 每排2至25个触芯, 直角

.

10µ英寸镀金触芯, 工作温度范围: -55°C至125°C

.

磷青铜端子材料

.

黑色玻璃填充聚酯绝缘材料

.

符合UL E111594, CSA 090871_0_000标准

.

锁定引线, 锁定夹功能选项
