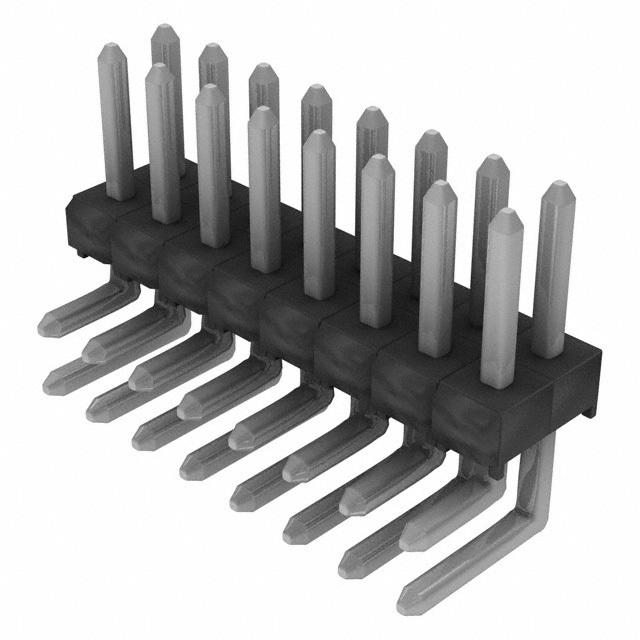

板至板连接, 2.54 mm, 16 触点, 针座, TSW Series, 通孔安装, 2 排
针座 通孔,直角 16 位置 0.100"(2.54mm)
欧时:
.100" Terminal Strip
得捷:
CONN HEADER R/A 16POS 2.54MM
e络盟:
板至板连接, 2.54 mm, 16 触点, 针座, TSW Series, 通孔安装, 2 排
艾睿:
Mounting this unshrouded TSW-108-08-T-D-RA header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 16 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 2-row connector. It has a right angle body orientation. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 450 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. TSW-108-08-T-D-RA is housed in black polyester. This product is 20.32 mm long, 5.56 mm tall and 12.44 mm deep.
Jameco:
.100 Terminal Strip Assembly 450 VAC 7 Amp Surface Mount Unshrouded Header 20.32mm
Verical:
Conn Unshrouded Header HDR 16 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk
Newark:
# SAMTEC TSW-108-08-T-D-RA Board-To-Board Connector, 2.54 mm, 16 Contacts, Header, TSW Series, Through Hole, 2 Rows
触点数 16
极性 Male
触点电镀 Tin
排数 2
针脚数 16
额定电流Max 6.3A/触头
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 450 VAC
安装方式 Through Hole
引脚间距 2.54 mm
长度 20.3 mm
宽度 2.54 mm
高度 5.56 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
TSW-108-08-T-D-RA Samtec 申泰电子 | 当前型号 | 当前型号 |
TSW-108-08-T-D-NA 申泰电子 | 完全替代 | TSW-108-08-T-D-RA和TSW-108-08-T-D-NA的区别 |
TSW-108-08-T-D-LA 申泰电子 | 完全替代 | TSW-108-08-T-D-RA和TSW-108-08-T-D-LA的区别 |
TSW-108-08-T-D-LC-001 申泰电子 | 完全替代 | TSW-108-08-T-D-RA和TSW-108-08-T-D-LC-001的区别 |
