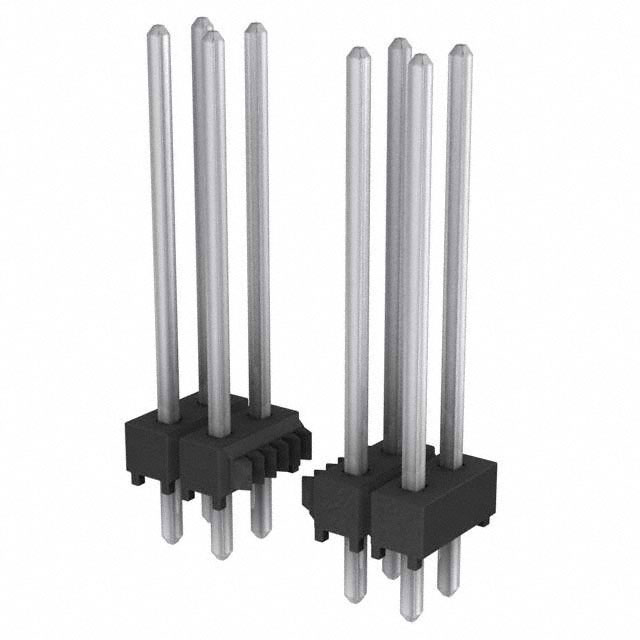

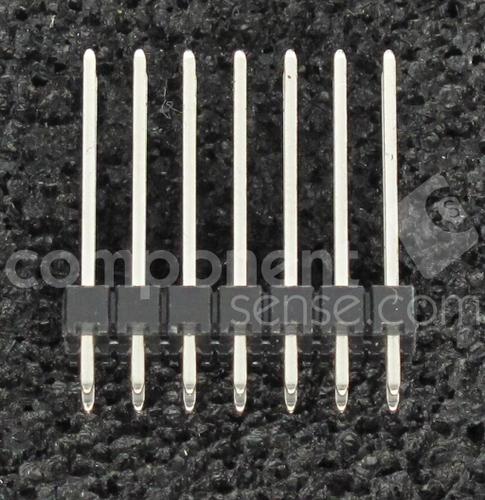

TSW-107-15-T-D

SAMTEC TSW-107-15-T-D Board-To-Board Connector, 2.54mm, 14Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 14 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 14POS 2.54MM

欧时:
Classic PCB HDR Strips 0.100"

艾睿:
This unshrouded TSW-107-15-T-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. TSW-107-15-T-D is housed in black polyester. This product is 17.78 mm long, 15.75 mm tall and 5.08 mm deep.

安富利:
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-107-15-T-D  Board-To-Board Connector, 2.54 mm, 14 Contacts, Header, TSW Series, Through Hole, 2 Rows
