TST-110-01-T-D

SAMTEC  TST-110-01-T-D.  针座, 2.54MM, 焊接, 通孔

The is a 20-position 2-row Shrouded Header with gold-plated phosphor bronze contacts and a black glass-filled polyester insulator. It mates with IDSD and SMSD series connectors.

.

-55 to 125°C Operating temperature range

欧时:
.100" Shrouded Terminal Strip, Cable Mat

得捷:
CONN HEADER VERT 20POS 2.54MM

e络盟:
线至板连接器, 2.54 mm, 20 触点, 针座, TST Series, 通孔安装, 2 排

艾睿:

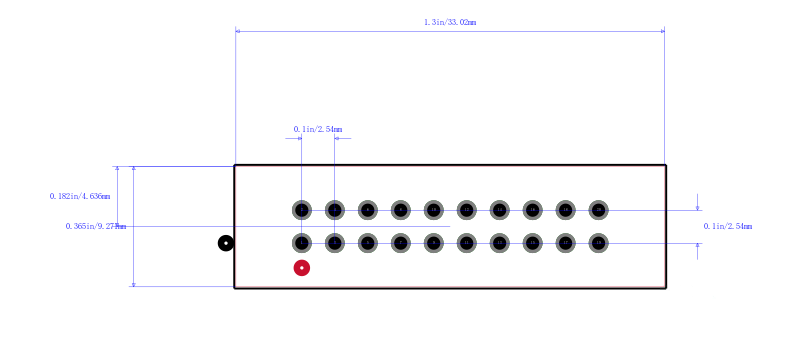

Think of Samtec&s;s shrouded TST-110-01-T-D header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. Its pitch is 2.54 mm. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 3.4 A/contact. TST-110-01-T-D is housed in black polyester. This product is 33.02 mm long, 9.27 mm tall and 9.27 mm deep. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 20 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TST-110-01-T-D  Wire-To-Board Connector, 2.54 mm, 20 Contacts, Header, TST Series, Through Hole, 2 Rows
