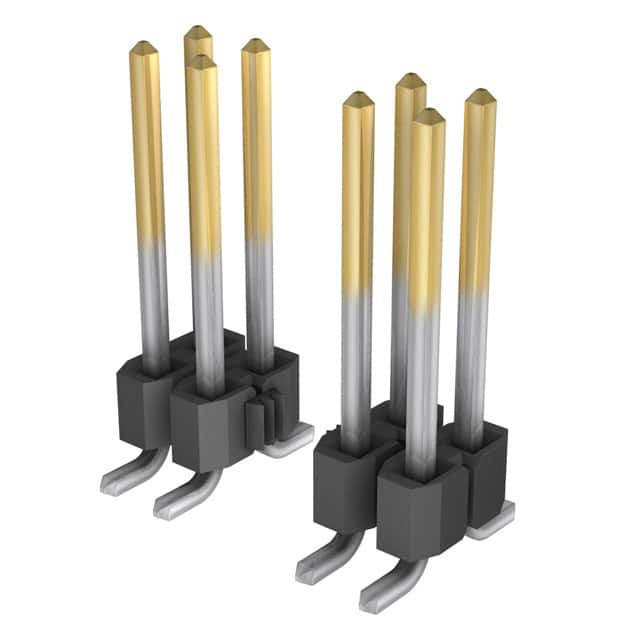

SAMTEC TSM-106-03-L-DV Board-To-Board Connector, 2.54mm, 12Contacts, Header, TSM Series, Surface Mount, 2Rows
针座 表面贴装型 12 位置 0.100"（2.54mm）
欧时:
HDR SMD 12POS 2 ROW VERT 2.54MM
得捷:
CONN HEADER SMD 12POS 2.54MM
艾睿:
Thanks to Samtec&s;s unshrouded TSM-106-03-L-DV header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 12 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 475 VAC. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 5.4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TSM-106-03-L-DV is housed in black liquid crystal polymer. This product is 15.24 mm long, 14.48 mm tall and 7.36 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
安富利:
Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST SMD Tube
Newark:
# SAMTEC TSM-106-03-L-DV Board-To-Board Connector, 2.54 mm, 12 Contacts, Header, TSM Series, Surface Mount, 2 Rows
