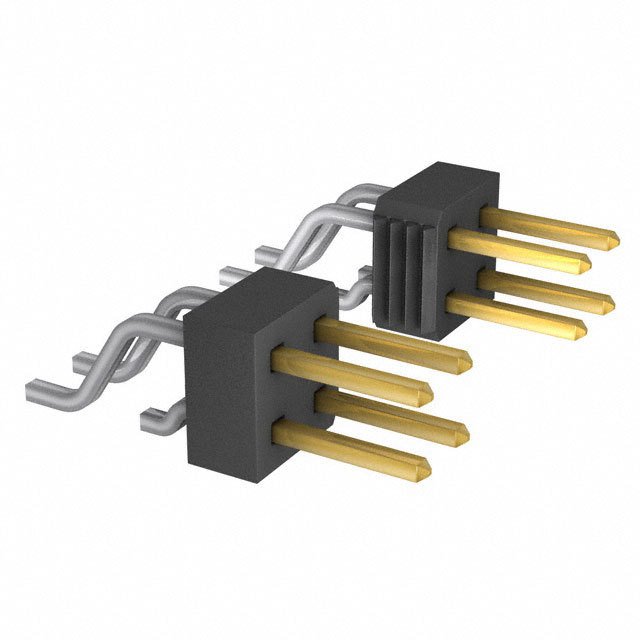

TSM-106-01-L-DH

集管和线壳 .100" Surface Mount Terminal Strip

The TSM series from are surface mount terminal strip headers. These are unshrouded headers with 0.25" 0.635mm square post and mates with Samtec SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, HLE, IDSS, IDSD, SMSD and SMSS series of connectors. There is choice of standard post heights which provides solution to mate with any Samtec sockets.

.

Pitch spacing is 2.54mm 2 to 36 contacts per row with double row horizontal pin -DH

.

High operating temperature range of -55°C to 125°C for 10µ" gold plated contacts

.

Contact material is phosphor bronze

.

Black liquid crystal polymer insulator material

.

Suitable for board stacking

.

Complies with UL E111594 and CSA 090871_0_000 standards
