TMS-110-02-G-S-RA

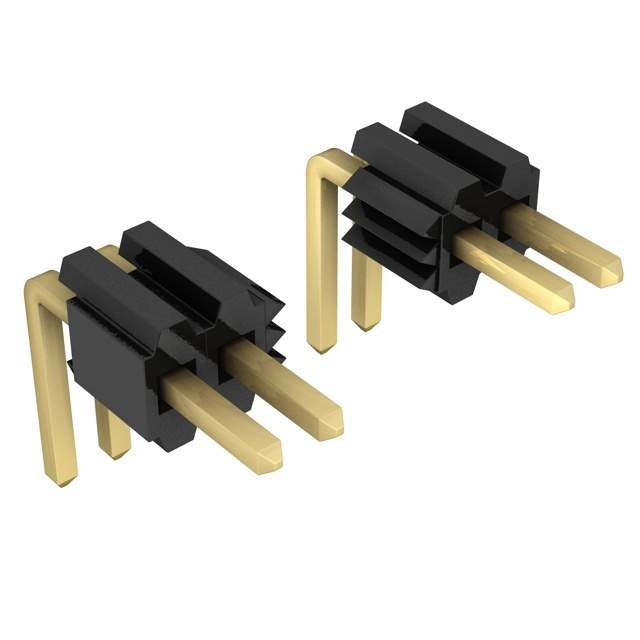

SAMTEC TMS-110-02-G-S-RA Board-To-Board Connector, 1.27mm, 10Contacts, Header, TMS Series, Through Hole, 1Rows

针座 通孔，直角 10 位置 0.050"（1.27mm）

得捷:
CONN HEADER R/A 10POS 1.27MM

艾睿:
Look no further than the unshrouded TMS-110-02-G-S-RA header connector from Samtec, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 1-row connector. It has a right angle body orientation. Its pitch is 1.27 mm. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 12.7 mm long, 2.48 mm tall and 6.6 mm deep. This connector has an operating temperature of -55 to 125 °C. TMS-110-02-G-S-RA is housed in black liquid crystal polymer. It uses the solder termination method.

Verical:
Conn Unshrouded Header HDR 10 POS 1.27mm Solder RA Side Entry Thru-Hole Tube

Newark:
# SAMTEC  TMS-110-02-G-S-RA  Board-To-Board Connector, 1.27 mm, 10 Contacts, Header, TMS Series, Through Hole, 1 Rows
