TMS-110-01-G-S

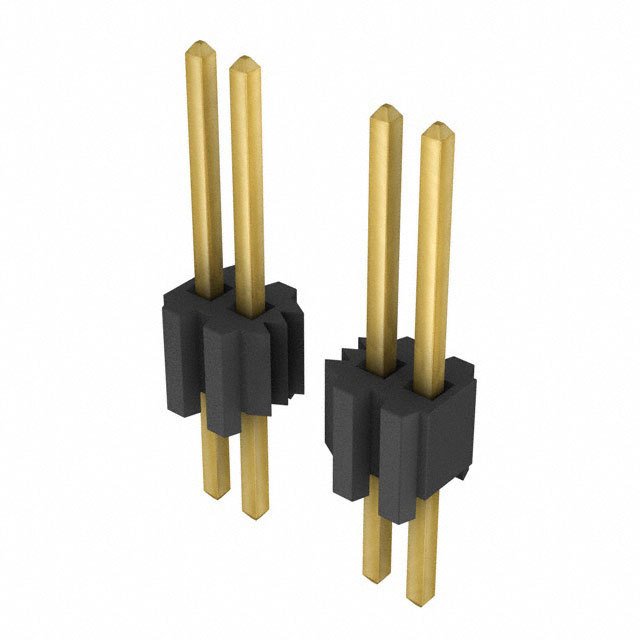

SAMTEC TMS-110-01-G-S Board-To-Board Connector, 1.27mm, 10Contacts, Header, TMS Series, Through Hole, 1Rows

针座 通孔 10 位置 0.050"（1.27mm）

欧时:
.050" x .100" Micro Terminal Strip

得捷:
CONN HEADER 10POS .050" T/H GOLD

艾睿:
Reduce safety concerns with this unshrouded TMS-110-01-G-S header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 10 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. Its pitch is 1.27 mm. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TMS-110-01-G-S is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 12.7 mm long, 8.38 mm tall and 2.48 mm deep.

安富利:
Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube

Verical:
Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  TMS-110-01-G-S  Board-To-Board Connector, 1.27 mm, 10 Contacts, Header, TMS Series, Through Hole, 1 Rows
