TMS-108-01-G-S

TMS-108-01-G-S图片1
TMS-108-01-G-S图片2
TMS-108-01-G-S图片3
TMS-108-01-G-S图片4
TMS-108-01-G-S概述

板至板连接, 1.27 mm, 8 触点, 针座, TMS Series, 通孔安装, 1 排

针座 通孔 8 位置 0.050"(1.27mm)


欧时:
.050" x .100" Micro Terminal Strip


得捷:
CONN HEADER 8POS .050" T/H GOLD


e络盟:
板至板连接, 1.27 mm, 8 触点, 针座, TMS Series, 通孔安装, 1 排


艾睿:
Support physical configuration options for jumper posts by mounting this unshrouded TMS-108-01-G-S header connector from Samtec. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 1.27 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TMS-108-01-G-S is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 10.16 mm long, 8.38 mm tall and 2.48 mm deep. It uses the solder termination method.


安富利:
Conn Unshrouded Header HDR 8 POS 1.27mm Solder ST Thru-Hole Tube


Newark:
# SAMTEC  TMS-108-01-G-S  Board-To-Board Connector, 1.27 mm, 8 Contacts, Header, TMS Series, Through Hole, 1 Rows


TMS-108-01-G-S中文资料参数规格
技术参数

触点数 8

极性 Male

触点电镀 Gold

额定电流 5A/触头

排数 1

针脚数 8

额定电流Max 5A/触头

工作温度Max 125 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 8.38 mm

物理参数

外壳颜色 Black

颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 -, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

TMS-108-01-G-S引脚图与封装图

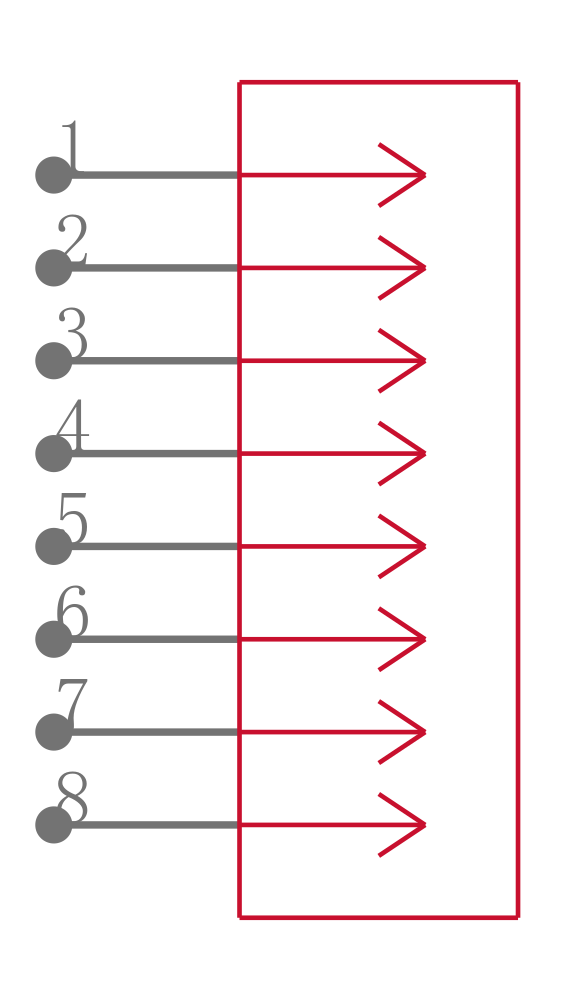

TMS-108-01-G-S引脚图

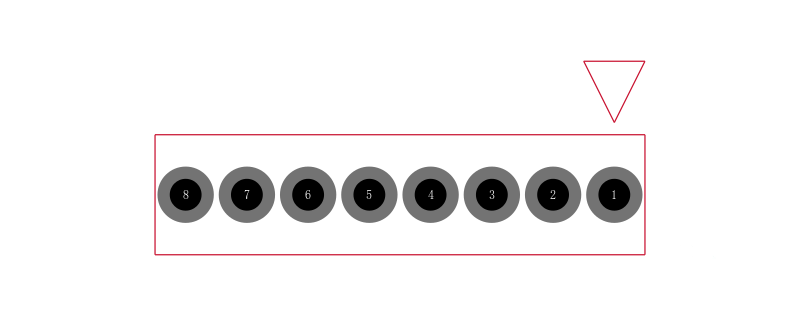

TMS-108-01-G-S封装图

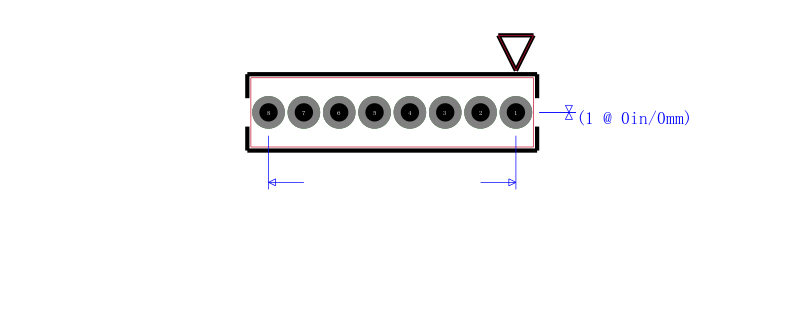

TMS-108-01-G-S封装焊盘图
在线购买TMS-108-01-G-S
型号: TMS-108-01-G-S
描述:板至板连接, 1.27 mm, 8 触点, 针座, TMS Series, 通孔安装, 1 排
替代型号TMS-108-01-G-S
型号/品牌 代替类型 替代型号对比

TMS-108-01-G-S

Samtec 申泰电子

当前型号

当前型号

TMS-108-01-S-S-RA

申泰电子

完全替代

TMS-108-01-G-S和TMS-108-01-S-S-RA的区别

HTMS-108-01-G-S

申泰电子

完全替代

TMS-108-01-G-S和HTMS-108-01-G-S的区别
