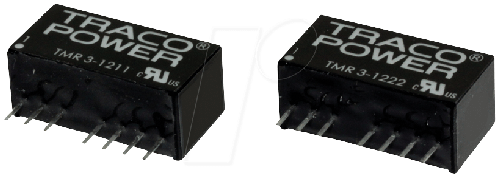

TRACOPOWER TMR 3-1210 直流/直流转换器 隔离式板载, 稳压, SIP, 固定, 通孔安装, 3 W, 3.3 V, 700 mA
The TMR 3 series single/dual-output 3W isolated DC/DC Converter with regulated output, featuring wide 2:1 input voltage ranges. An excellent efficiency allows -40 to 85°C operation temperatures. Further features include remote ON/OFF control and continuous short-circuit protection. The compact dimensions of this converter make it an ideal solution for many space critical applications.
- .
- Fully regulated output voltage
- .
- Small footprint
- .
- High efficiency up to 85%
- .
- Models with 1500 and 3000VDC I/O isolation functional insulation
额定功率 3 W
输出接口数 1
输出电压 3.3 VDC
输出电流 700 mA
开关频率 100 kHz
输入电压DC Max 18 V
输入电压DC Min 9 v
输出电流Max 700 mA
输出功率Max 3 W
输入电压 9.18 V
安装方式 Through Hole
长度 0.86 in
宽度 11.1 mm
高度 9.2 mm
重量 4.8 g
工作温度 -40℃ ~ 70℃
包装方式 Tube
制造应用 Power Management, 工业, Industrial, 农业, 传感与仪器, Sensing & Instrumentation, HVAC, Agriculture, 电源管理
RoHS标准 RoHS Compliant
REACH SVHC版本 2015/12/17
