TSW-150-23-L-S

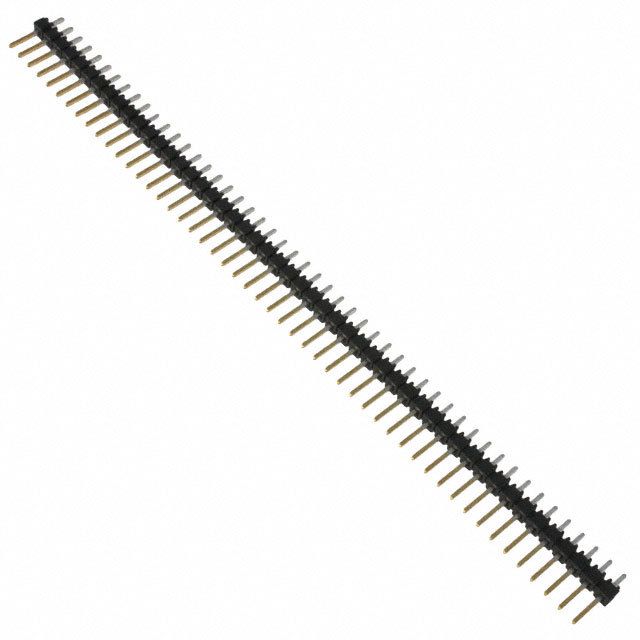

SAMTEC TSW-150-23-L-S Board-To-Board Connector, 2.54mm, 50Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 50 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 50POS 2.54MM

欧时:
Classic PCB HDR Strips 0.100"

艾睿:
Samtec&s;s unshrouded TSW-150-23-L-S header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. This is a 1-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. TSW-150-23-L-S is housed in black polyester. This product is 127 mm long, 8.38 mm tall and 2.54 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.

Chip1Stop:
Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TSW-150-23-L-S  Board-To-Board Connector, 2.54 mm, 50 Contacts, Header, TSW Series, Through Hole, 1 Rows
