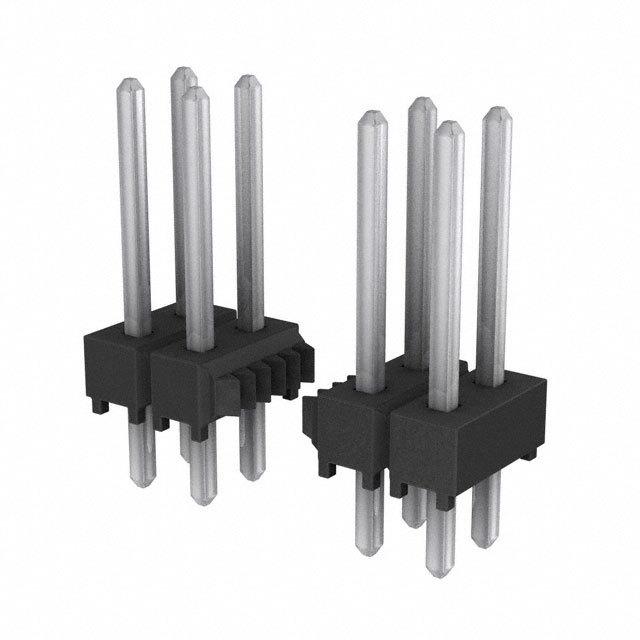

TSW-136-14-T-D

SAMTEC TSW-136-14-T-D Board-To-Board Connector, 2.54mm, 72Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 72 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 72POS 2.54MM

艾睿:
Samtec&s;s unshrouded TSW-136-14-T-D header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 72 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This connector has an operating temperature of -55 to 105 °C. TSW-136-14-T-D is housed in black polyester. This product is 91.44 mm long, 10.67 mm tall and 5.08 mm deep. It uses the solder termination method.

Verical:
Conn Unshrouded Header HDR 72 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TSW-136-14-T-D  Board-To-Board Connector, 2.54 mm, 72 Contacts, Header, TSW Series, Through Hole, 2 Rows
