TSW-130-26-T-D

2.54mm 方针

针座 通孔 60 位置 0.100"（2.54mm）

立创商城:
2.54mm 方针

得捷:
CONN HEADER VERT 60POS 2.54MM

艾睿:

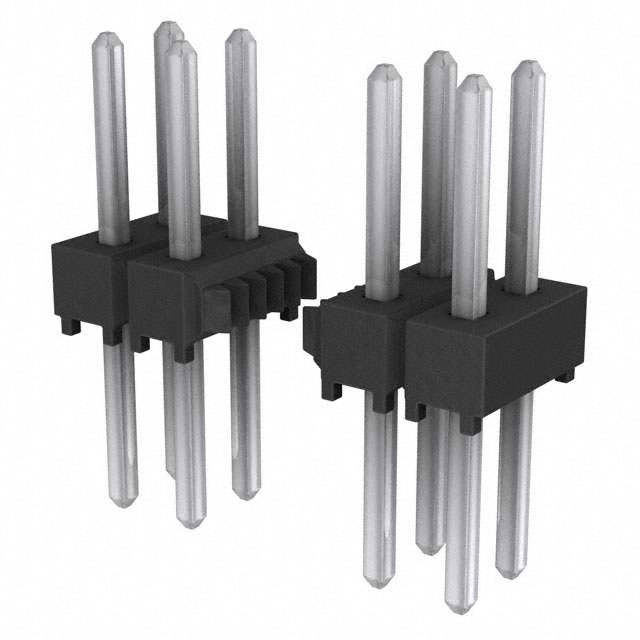

As an added safety precaution, the unshrouded TSW-130-26-T-D header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 60 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. This product is 76.2 mm long, 8.38 mm tall and 5.08 mm deep. It uses the solder termination method. TSW-130-26-T-D is housed in black polyester. This connector has an operating temperature of -55 to 105 °C.

Newark:
# SAMTEC  TSW-130-26-T-D  Board-To-Board Connector, 2.54 mm, 60 Contacts, Header, TSW Series, Through Hole, 2 Rows
