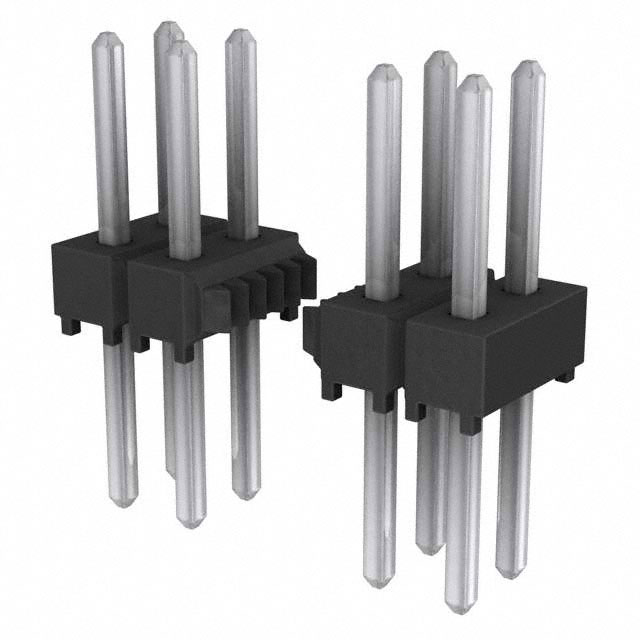

TSW-128-26-T-D

2.54mm 方针

针座 通孔 56 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 56POS 2.54MM

立创商城:
2.54mm 方针

艾睿:
Samtec&s;s unshrouded TSW-128-26-T-D header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 56 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 105 °C. This product is 71.12 mm long, 8.38 mm tall and 5.08 mm deep. TSW-128-26-T-D is housed in black polyester. It uses the solder termination method.

Newark:
# SAMTEC  TSW-128-26-T-D  Board-To-Board Connector, 2.54 mm, 56 Contacts, Header, TSW Series, Through Hole, 2 Rows
