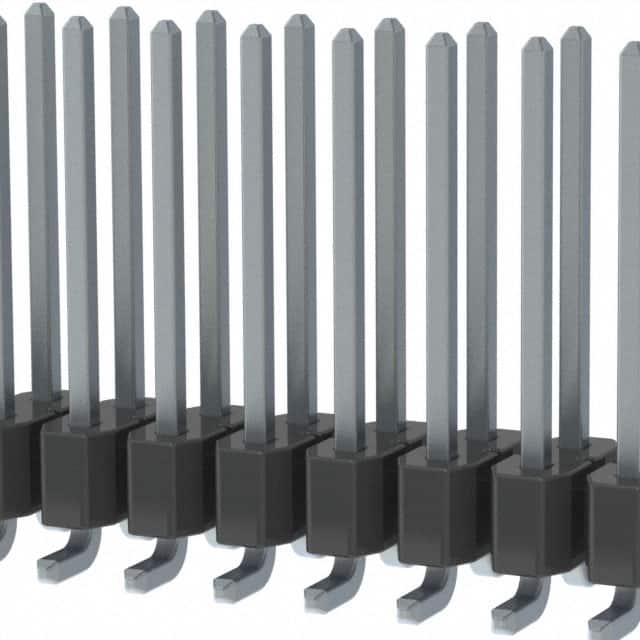

HEADER, 2.54MM, SMT, 72POS; Series: TSM; Pitch Spacing: 2.54mm; No. of Rows: 2; No
针座 表面贴装型 72 位置 0.100"（2.54mm）
得捷:
CONN HEADER SMD 72POS 2.54MM
艾睿:
As an added safety precaution, the unshrouded TSM-136-03-T-DV header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 72 contacts that are made out of phosphor bronze and plated with tin over nickel. It has a header type gender. It has a maximum voltage rating of 475 VAC. This is a 2-row connector. It has a straight body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5.4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TSM-136-03-T-DV is housed in black liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 91.44 mm long, 14.48 mm tall and 7.36 mm deep.
安富利:
Conn Unshrouded Header HDR 72 POS 2.54mm Solder ST SMD Tube
Newark:
# SAMTEC TSM-136-03-T-DV Board-To-Board Connector, 2.54 mm, 72 Contacts, Header, TSM Series, Surface Mount, 2 Rows
