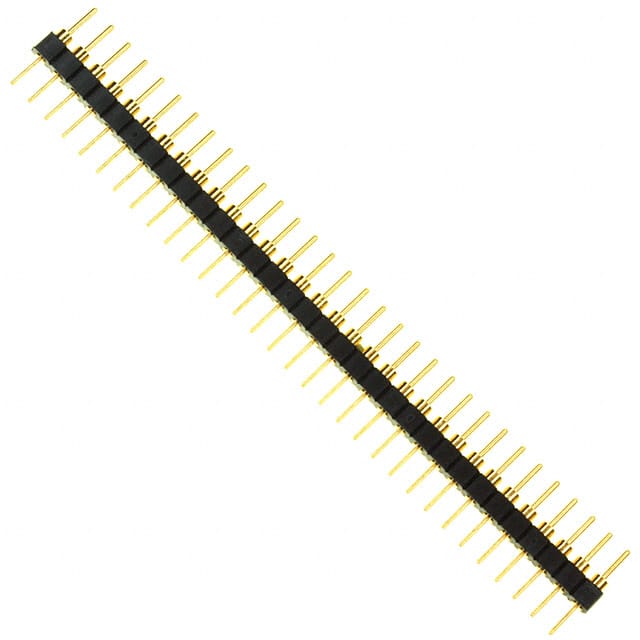

TS-132-G-A

板至板连接, 2.54 mm, 32 触点, 针座, TS Series, 通孔安装, 1 排

Connector Header Through Hole 32 position 0.100" 2.54mm

得捷:
CONN HEADER VERT 32POS 2.54MM

欧时:
2.54mm TS series PCB pin header, 32P

e络盟:
板至板连接, 2.54 mm, 32 触点, 针座, TS Series, 通孔安装, 1 排

艾睿:
Use this unshrouded TS-132-G-A connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 32 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. This is a 1-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TS-132-G-A is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 81.28 mm long, 8.16 mm tall and 2.54 mm deep.

Chip1Stop:
Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  TS-132-G-A  Board-To-Board Connector, 2.54 mm, 32 Contacts, Header, TS Series, Through Hole, 1 Rows
