TSW-110-23-G-D

SAMTEC TSW-110-23G-D Board-To-Board Connector, 2.54mm, 20Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 20 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER VERT 20POS 2.54MM

艾睿:

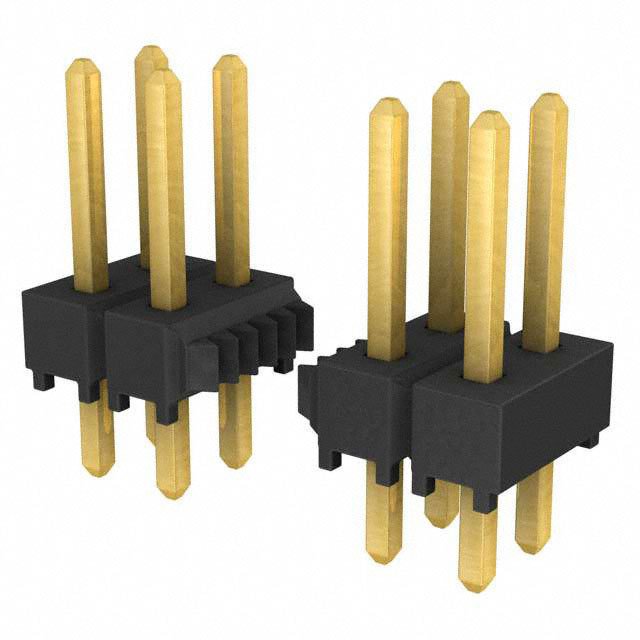

This unshrouded TSW-110-23-G-D header connector from Samtec is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-110-23-G-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. This product is 25.4 mm long, 8.38 mm tall and 5.08 mm deep. It uses the solder termination method.

安富利:
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  TSW-110-23-G-D  Board-To-Board Connector, 2.54 mm, 20 Contacts, Header, TSW Series, Through Hole, 2 Rows
