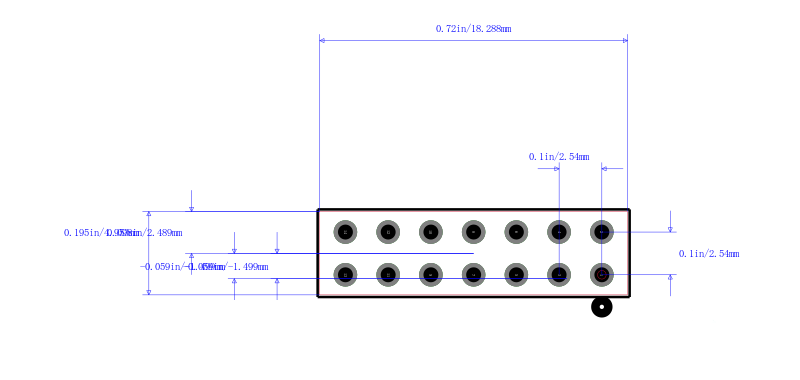

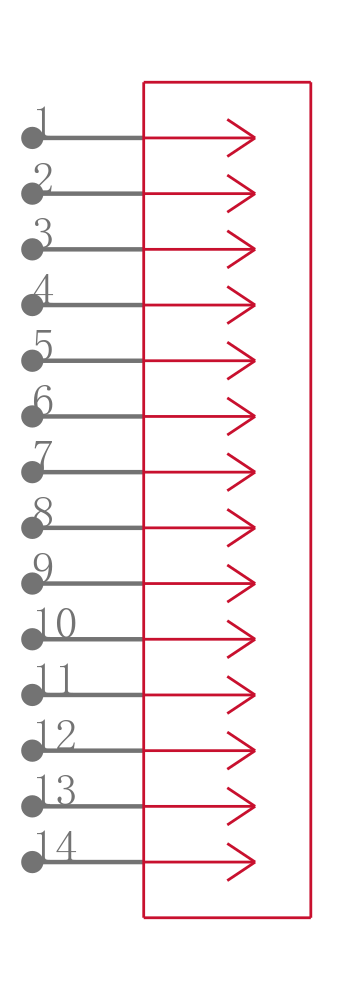

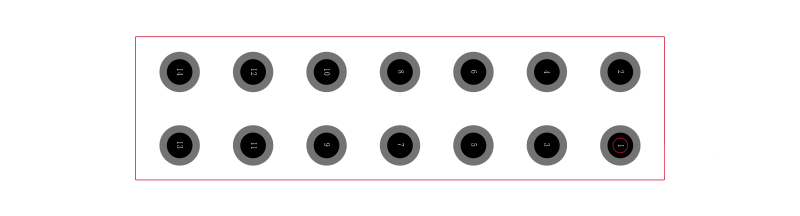

TSW-107-14-S-D

SAMTEC TSW-107-14-S-D Board-To-Board Connector, 2.54mm, 14Contacts, Header, TSW Series, Through Hole, 2Rows

Connector Header Through Hole 14 position 0.100" 2.54mm

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER VERT 14POS 2.54MM

艾睿:
Make strong and binding connections on your circuit boards by adopting this unshrouded TSW-107-14-S-D connector from Samtec. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 550 VAC. Its pitch is 2.54 mm. This is a 2-row connector. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. TSW-107-14-S-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 17.78 mm long, 10.67 mm tall and 5.08 mm deep.

Newark:
# SAMTEC  TSW-107-14-S-D  Board-To-Board Connector, 2.54 mm, 14 Contacts, Header, TSW Series, Through Hole, 2 Rows
