TMM-139-01-T-D

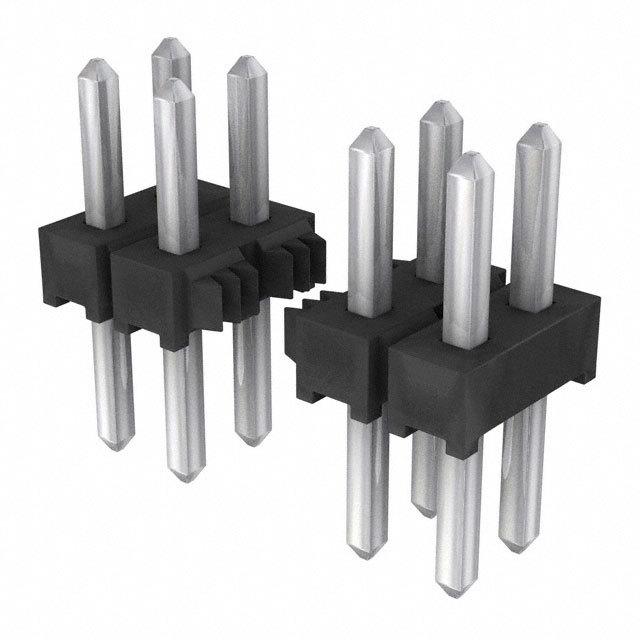

SAMTEC TMM-139-01-T-D Board-To-Board Connector, 2mm, 78Contacts, Header, TMM Series, Through Hole, 2Rows

The TMM series from are FleXYZ low profile terminal strip headers. These are unshrouded through hole headers with 0.020" 0.50mm square post and mates with Samtec CLT, SQT, SQW, ESQT, TLE, SMM, MMS and TCSD series of connectors. This FleXYZ design provides flexibility in all three axes up to four rows wide and 200 pins. Through hole terminal strip headers are available in large variety terminal lengths and options.

.

Orderable with single/dual/ four rows -S/-D/ -Q option

.

Pitch spacing is 2mm 1 to 50 contacts per row with straight orientation

.

High operating temperature range of -55°C to 105°C for matte tin plated contacts

.

Contact material is phosphor bronze

.

Black liquid crystal polymer insulator material

.

Current rating is 3.2A

.

Horizontal mounting to PCB

.

Complies with UL E111594 and CSA 090871_0_000 standards
