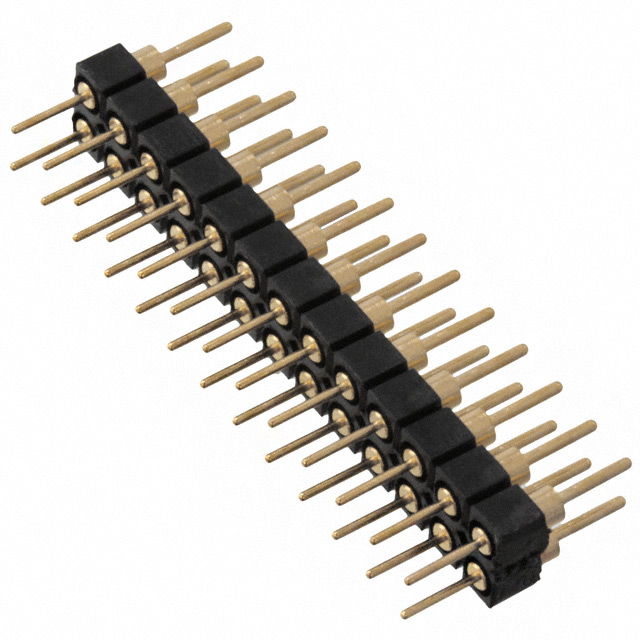

TD-113-G-A

SAMTEC TD-113G-A Board-To-Board Connector, 2.54mm, 26Contacts, Header, TD Series, Through Hole, 2Rows

针座 通孔 26 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 26POS 2.54MM

艾睿:

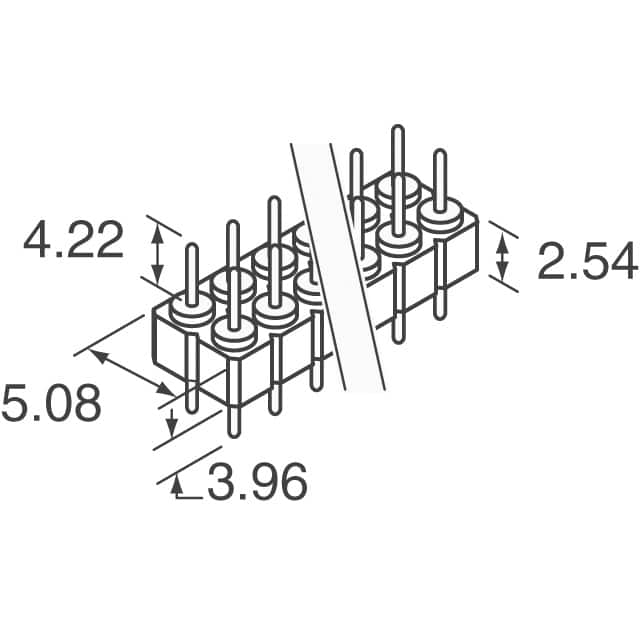

Mounting this unshrouded TD-113-G-A header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 26 contacts that are made out of brass and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 1 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 33.02 mm long, 8.16 mm tall and 5.08 mm deep. TD-113-G-A is housed in black polyester.

Newark:
# SAMTEC  TD-113-G-A  Board-To-Board Connector, 2.54 mm, 26 Contacts, Header, TD Series, Through Hole, 2 Rows
