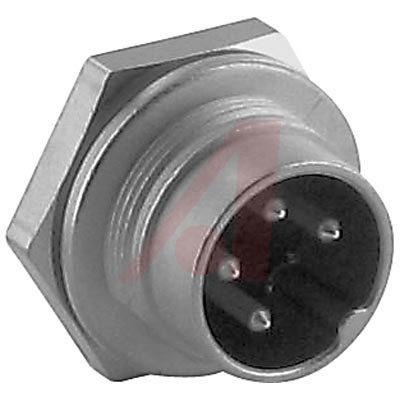

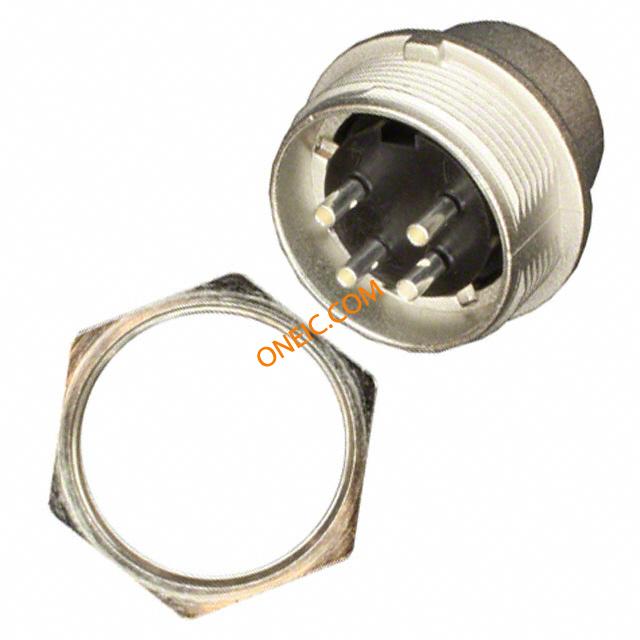

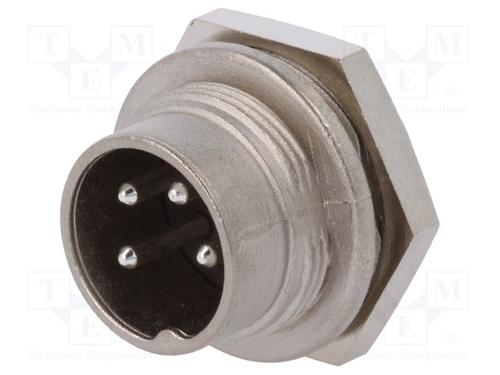

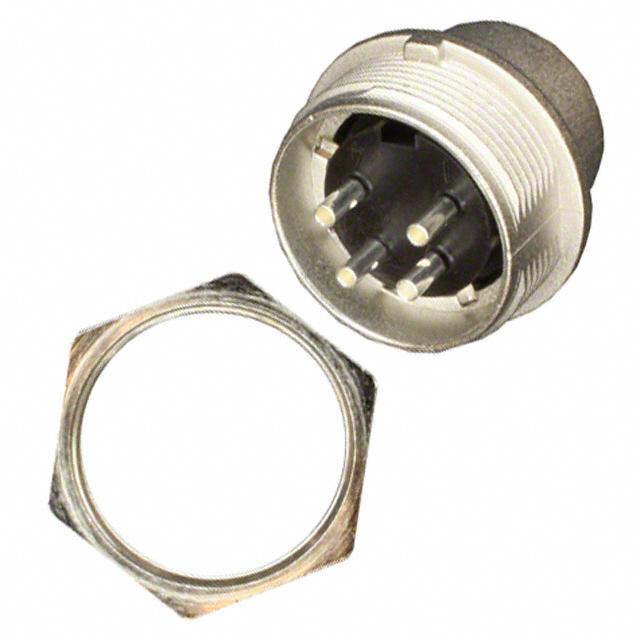

Circular DIN Connectors 4Pin male; Front Pnl Mnt
Male Receptacle Cable Connector, Rated Voltage 300 V, Rated Current 5 A
** Materials:** Housing — Die-cast, nickel-plated; Dielectric — Thermoplastic; Contact Plating — Silver or gold. ** Current Rating:** 5 A, except 3 A for 12 and 14 contact. ** Voltage Rating:** 300 V, except 150 V for 5S, 7 DIN, 8, 12 and 14 contact. Cable connector length — approximately 2.65". Allied lists solder termination types. Crimp type is available by special order. ** Cable Outlet:** 6 mm. ** Temperature Rating:** –40 to +85°C.
** Maximum Panel Thickness** : 3.5 mm 0.138".
* UL File Number: E63093, IEC529, DIN40-450; Rated IP40
* Internal Metal Strain Relief with Half Shell Construction and Snap-In Latching
* Complete EMI Shielding in Fully Mated and Locked Position
* Metal Threaded Coupling ACC to IEC130-9
