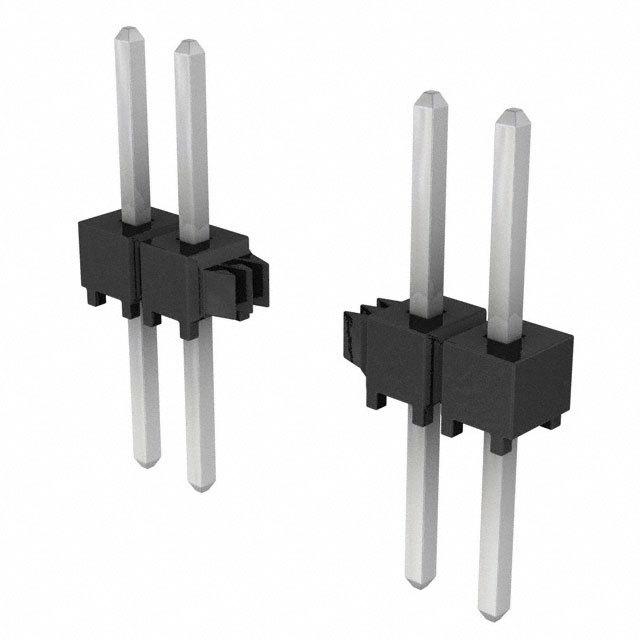

TSW-150-08-T-S

SAMTEC TSW-150-08-T-S Board-To-Board Connector, 2.54mm, 50Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 50 位置 0.100"（2.54mm）

欧时:
.100" Terminal Strip

得捷:
CONN HEADER VERT 50POS 2.54MM

艾睿:
As an added safety precaution, the unshrouded TSW-150-08-T-S header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-150-08-T-S is housed in black polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. This product is 127 mm long, 8.38 mm tall and 2.54 mm deep.

Chip1Stop:
Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Thru-Hole Bulk

Verical:
Conn Unshrouded Header HDR 50 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Newark:
# SAMTEC  TSW-150-08-T-S  Board-To-Board Connector, 2.54 mm, 50 Contacts, Header, TSW Series, Through Hole, 1 Rows
