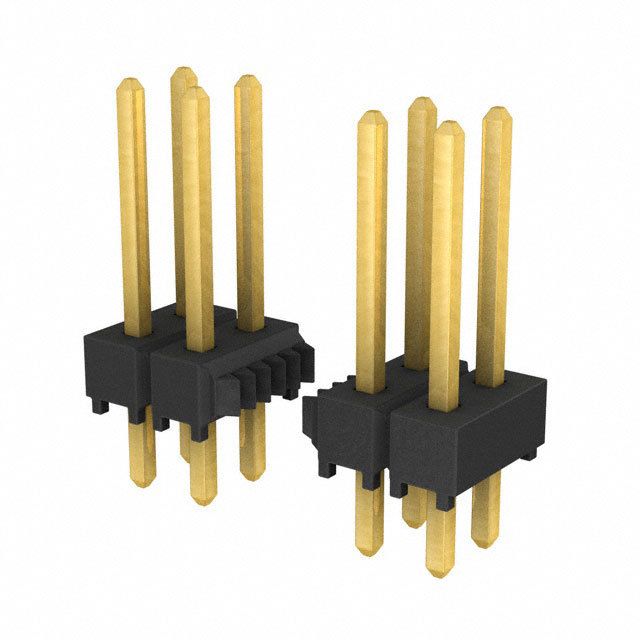

TSW-140-14-G-D

SAMTEC TSW-140-14G-D Board-To-Board Connector, 2.54mm, 80Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 80 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 80POS 2.54MM

艾睿:
Use this unshrouded TSW-140-14-G-D header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 80 contacts that are made out of phosphor bronze and plated with gold over nickel. This is a 2-row connector. Its pitch is 2.54 mm. It has a header type gender. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 101.6 mm long, 10.67 mm tall and 5.08 mm deep. TSW-140-14-G-D is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 80 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-140-14-G-D  Board-To-Board Connector, 2.54 mm, 80 Contacts, Header, TSW Series, Through Hole, 2 Rows
