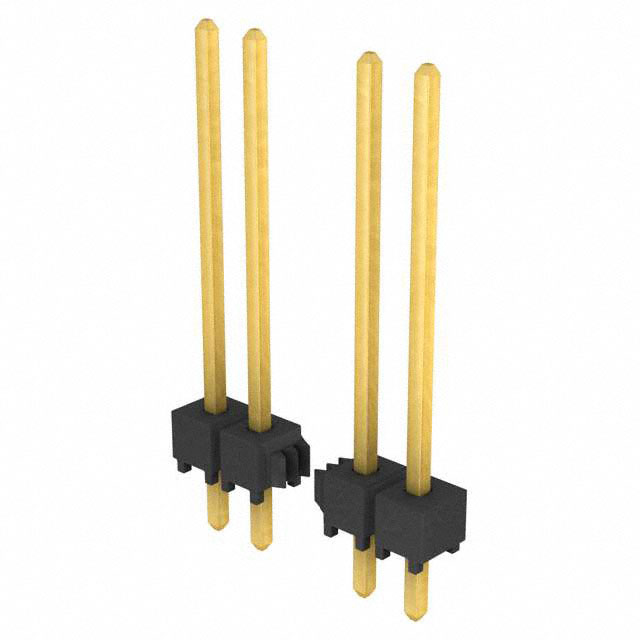

TSW-120-17-G-S

SAMTEC TSW-120-17G-S Board-To-Board Connector, 2.54mm, 20Contacts, Header, TSW Series, Through Hole, 1Rows

针座 通孔 20 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 20POS 2.54MM

艾睿:
This unshrouded TSW-120-17-G-S header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a straight body orientation. This is a 1-row connector. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 50.8 mm long, 18.28 mm tall and 2.54 mm deep. TSW-120-17-G-S is housed in black polyester.

Newark:
# SAMTEC  TSW-120-17-G-S  Board-To-Board Connector, 2.54 mm, 20 Contacts, Header, TSW Series, Through Hole, 1 Rows
