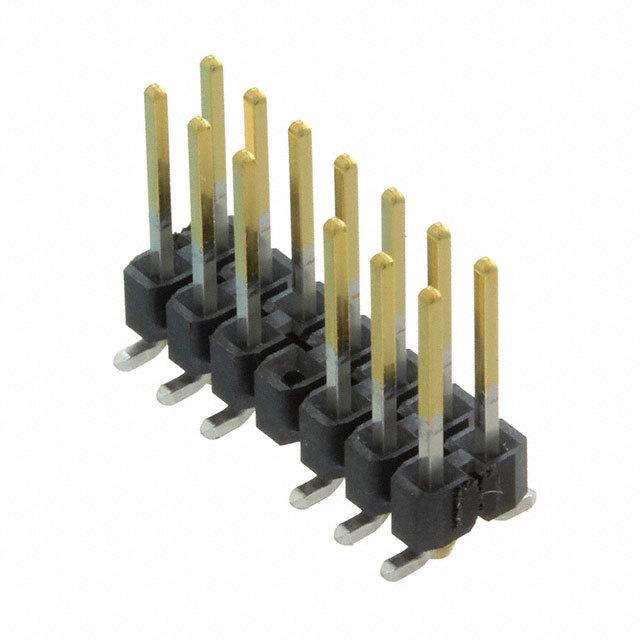

Conn Unshrouded Header HDR 14POS 2.54mm Solder ST SMD Tube
Connector Header Surface Mount 14 position 0.100" 2.54mm
欧时:
.100" SMD HDR 2Row
得捷:
CONN HEADER SMD 14POS 2.54MM
艾睿:
Use this unshrouded TSM-107-02-S-DV-A-007 header connector from Samtec where IDC ribbon cables are used. This HDR connector&s;s 14 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. This is a 2-row connector. It has a header type gender. It has a maximum voltage rating of 475 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 5.4 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 17.78 mm long, 11.94 mm tall and 7.36 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. TSM-107-02-S-DV-A-007 is housed in black liquid crystal polymer.
Verical:
Conn Unshrouded Header HDR 14 POS 2.54mm Solder ST Top Entry SMD Tube
Newark:
# SAMTEC TSM-107-02-S-DV-A-007 .025 SQ. TERMINAL STRIPS
