TSW-116-23-L-D

2.54mm 方针

针座 通孔 32 位置 0.100"（2.54mm）

立创商城:
2.54mm 方针

得捷:
CONN HEADER VERT 32POS 2.54MM

艾睿:

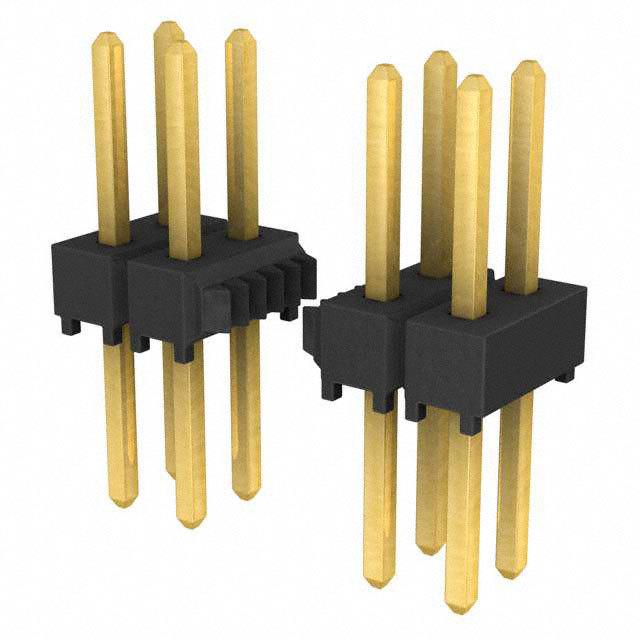

Look no further than the unshrouded TSW-116-23-L-D header connector from Samtec, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 32 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. It has a straight body orientation. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-116-23-L-D is housed in black polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 40.64 mm long, 8.38 mm tall and 5.08 mm deep.

Newark:
# SAMTEC  TSW-116-23-L-D  Board-To-Board Connector, 2.54 mm, 32 Contacts, Header, TSW Series, Through Hole, 2 Rows

Electro Sonic:
Conn Unshrouded Header HDR 32 POS 2.54mm Solder ST Thru-Hole Bulk
