TSW-114-08-G-D-RA

SAMTEC TSW-114-08-G-D-RA Board-To-Board Connector, 2.54mm, 28Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔，直角 28 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

得捷:
CONN HEADER R/A 28POS 2.54MM

艾睿:

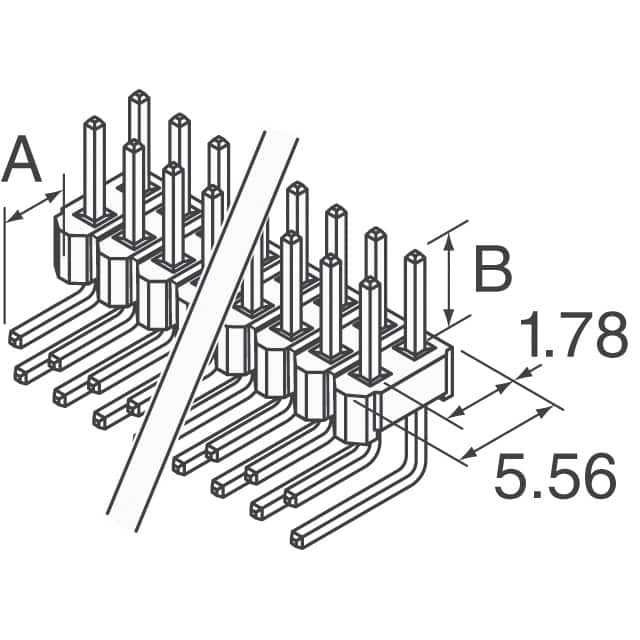

Samtec brings you their unshrouded TSW-114-08-G-D-RA header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector&s;s 28 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 450 VAC. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 6.3 A/contact. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C. This product is 35.56 mm long, 5.56 mm tall and 12.44 mm deep. TSW-114-08-G-D-RA is housed in black polyester.

安富利:
Conn Unshrouded Header HDR 28 POS 2.54mm Solder RA Thru-Hole

Newark:
# SAMTEC  TSW-114-08-G-D-RA  Board-To-Board Connector, 2.54 mm, 28 Contacts, Header, TSW Series, Through Hole, 2 Rows
