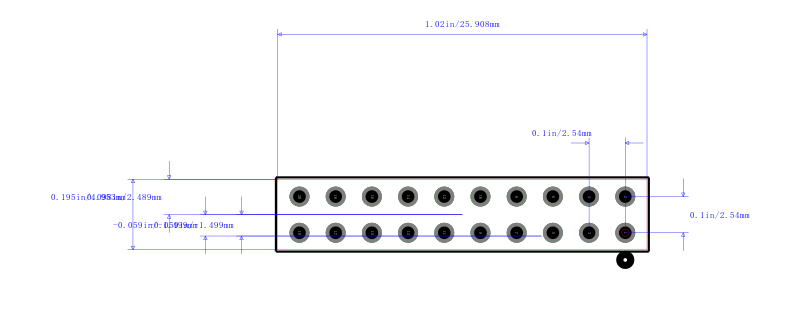

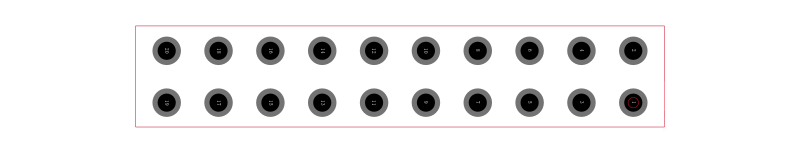

TSW-110-19-G-D

SAMTEC TSW-110-19G-D Board-To-Board Connector, 2.54mm, 20Contacts, Header, TSW Series, Through Hole, 2Rows

针座 通孔 20 位置 0.100"（2.54mm）

欧时:
HEADER TH 20POS 2.54MM 2 ROW

得捷:
CONN HEADER VERT 20POS 2.54MM

艾睿:
Mounting this unshrouded TSW-110-19-G-D header connector from Samtec to your printed circuit board can help you support multiple physical configuration options. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 2.54 mm. It has a maximum voltage rating of 550 VAC. This is a 2-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 6.3 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TSW-110-19-G-D is housed in black polyester. This product is 25.4 mm long, 23.37 mm tall and 5.08 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole

Newark:
# SAMTEC  TSW-110-19-G-D  Board-To-Board Connector, 2.54 mm, 20 Contacts, Header, TSW Series, Through Hole, 2 Rows
