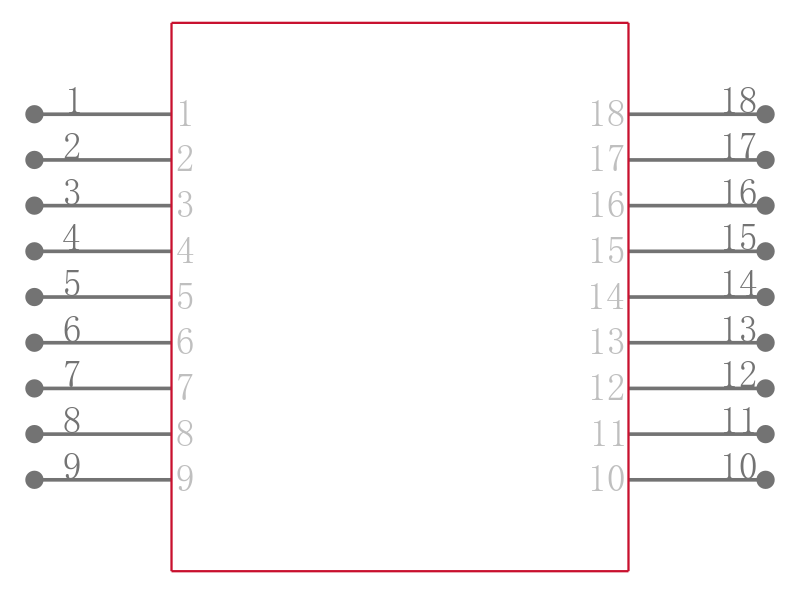

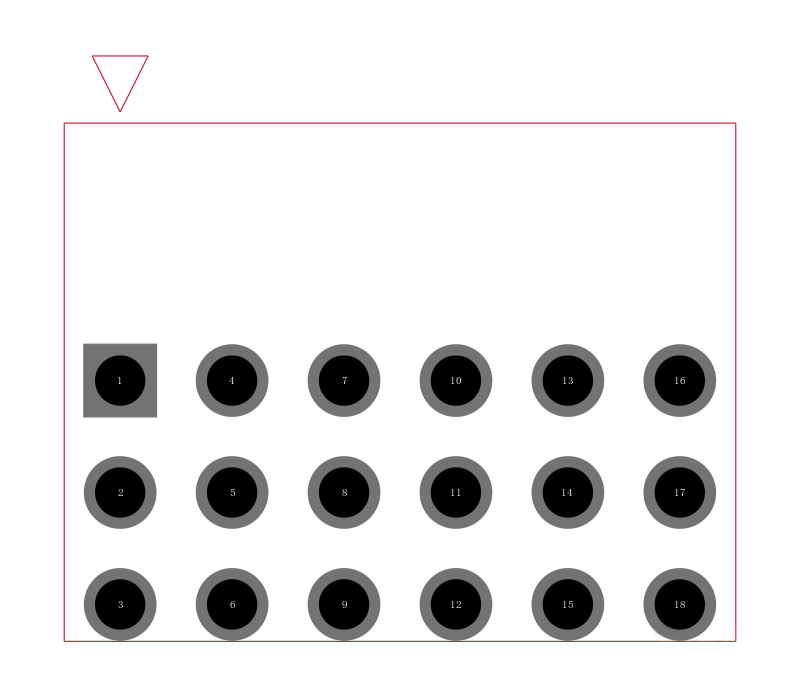

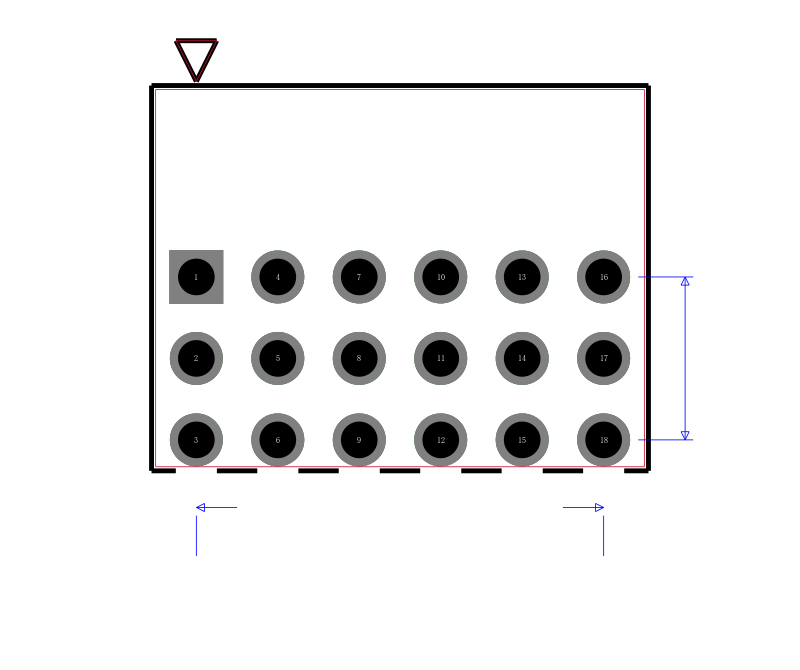

TSW-106-08-G-T-RA

2.54mm 方针

针座 通孔，直角 18 位置 0.100"（2.54mm）

欧时:
Classic PCB HDR Strips 0.100"

立创商城:
2.54mm 方针

得捷:
CONN HEADER R/A 18POS 2.54MM

艾睿:
Protect your printed circuit boards from accidental damages with Samtec&s;s unshrouded TSW-106-08-G-T-RA header connector. This HDR connector&s;s 18 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. It has a maximum voltage rating of 450 VAC. It has a right angle body orientation. This is a 3-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 6.3 A/contact. This connector has an operating temperature of -55 to 125 °C. TSW-106-08-G-T-RA is housed in black polyester. It uses the solder termination method. This product is 15.24 mm long, 8.12 mm tall and 14.98 mm deep.

安富利:
Conn Unshrouded Header HDR 18 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Unshrouded Header HDR 18 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk

Newark:
# SAMTEC  TSW-106-08-G-T-RA  Board-To-Board Connector, 2.54 mm, 18 Contacts, Header, TSW Series, Through Hole, 3 Rows
