TST-108-01-L-D

SAMTEC TST-108-01-L-D Wire-To-Board Connector, 2.54mm, 16Contacts, Header, TST Series, Through Hole, 2Rows

Connector Header Through Hole 16 position 0.100" 2.54mm

得捷:
CONN HEADER 16POS .100" T/H GOLD

欧时:
.100" Shrouded Terminal Strip, Cable Mat

艾睿:

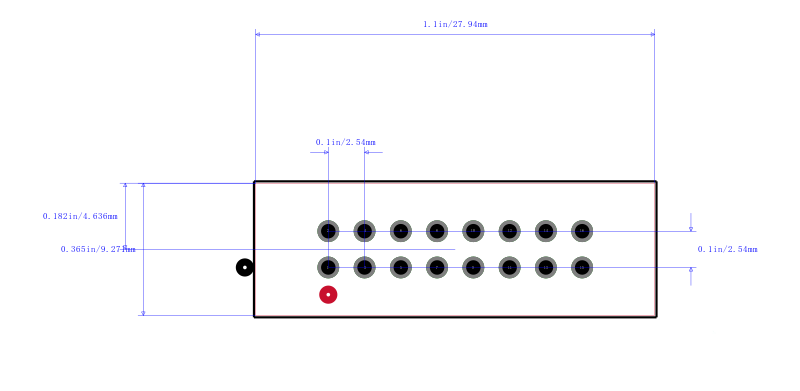

This shrouded TST-108-01-L-D header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 16 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3.4 A/contact. This product comes packaged in bulk, so the parts will be stored loosely. TST-108-01-L-D is housed in black polyester. This connector has an operating temperature of -55 to 125 °C. This product is 27.94 mm long, 9.27 mm tall and 9.27 mm deep. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header HDR 16 POS 2.54mm Solder ST Thru-Hole Bulk

Newark:
# SAMTEC  TST-108-01-L-D  Wire-To-Board Connector, 2.54 mm, 16 Contacts, Header, TST Series, Through Hole, 2 Rows
