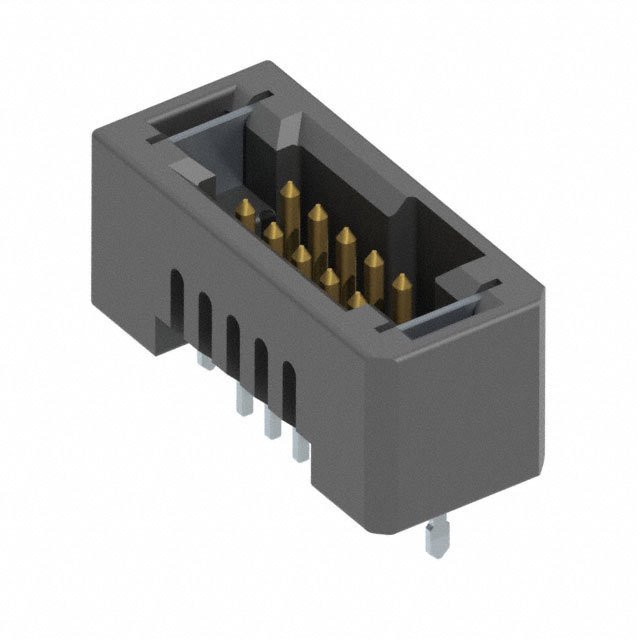

TFM-105-01-L-D-WT

SAMTEC TFM-105-01-L-D-WT Board-To-Board Connector, 1.27mm, 10Contacts, Header, TFM Series, Through Hole, 2Rows

The TFM series rugged Tiger Eye™ Terminal Strip features a multi-finger, BeCu contact system designed for high reliability and high cycle applications with surface mount or through-hole tails. Vertical or right-angle orientations for parallel, perpendicular and coplanar mating increase design flexibility, along with optional alignment pin, locking clip, dual screw down or weld tab for more rugged applications.

.

Shrouded body for blind mating

.

Orientation - Vertical, right-angle and horizontal

.

Termination - Through-hole and surface mount

.

Mating with high-reliability Tiger Eye™ contact sockets and cable assemblies

.

Multiple stack heights

.

Screw down, weld tab and solder nail options available for most rugged requirements

.

Extended Life Product™ ELP™
