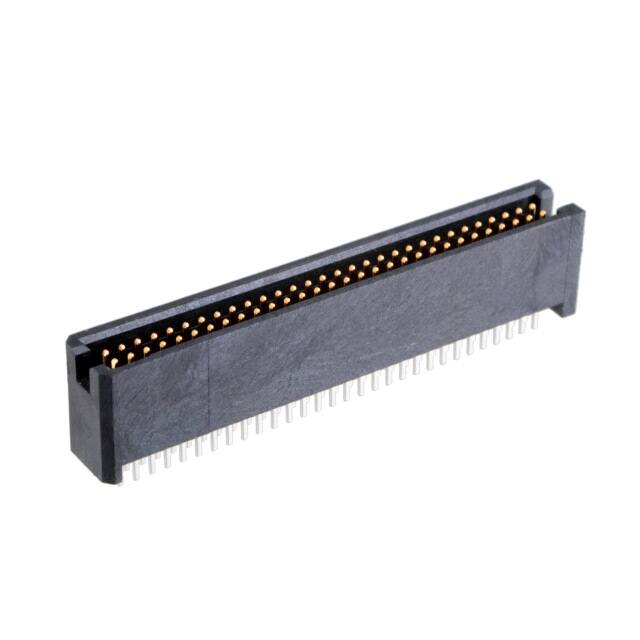

SAMTEC TFM-130-21-S-D Board-To-Board Connector, 1.27mm, 60Contacts, Header, TFM Series, Through Hole, 2Rows
针座 通孔 60 位置 0.050"（1.27mm）
得捷:
CONN HEADER VERT 60POS 1.27MM
艾睿:
Safety is an important concern when designing electronic devices. Samtec&s;s shrouded TFM-130-21-S-D header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 60 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 1.27 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TFM-130-21-S-D is housed in black liquid crystal polymer. This product is 41.28 mm long, 9.14 mm tall and 5.72 mm deep. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method.
安富利:
Conn Shrouded Header HDR 60 POS 1.27mm Solder ST Thru-Hole Tube
Newark:
# SAMTEC TFM-130-21-S-D Board-To-Board Connector, 1.27 mm, 60 Contacts, Header, TFM Series, Through Hole, 2 Rows
