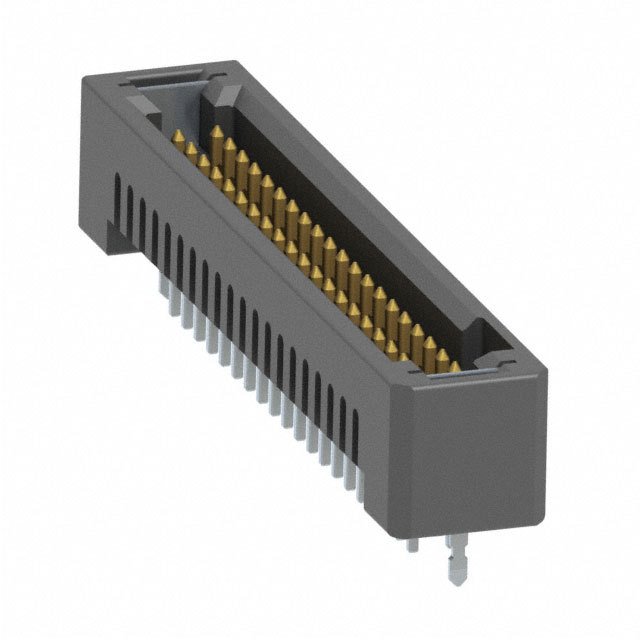

TFM-120-01-L-D-WT

SAMTEC TFM-120-01-L-D-WT Wire-To-Board Connector, 1.27mm, 40Contacts, Header, TFM Series, Through Hole, 2Rows

针座 通孔 40 位置 0.050"（1.27mm）

欧时:
.050" Tiger Eye High-Reliability Termina

得捷:
CONN HEADER VERT 40POS 1.27MM

艾睿:
Make strong and binding connections on your circuit boards by adopting this shrouded TFM-120-01-L-D-WT connector from Samtec. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 250 VAC. Its pitch is 1.27 mm. This is a 2-row connector. It has a straight body orientation. It has a header type gender. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. TFM-120-01-L-D-WT is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 28.58 mm long, 5.59 mm tall and 5.72 mm deep. It uses the solder termination method.

Verical:
Conn Shrouded Header 4 Sides HDR 40 POS 1.27mm Solder ST Top Entry Thru-Hole TIGER EYE™ Tube

Newark:
# SAMTEC  TFM-120-01-L-D-WT  Wire-To-Board Connector, 1.27 mm, 40 Contacts, Header, TFM Series, Through Hole, 2 Rows
