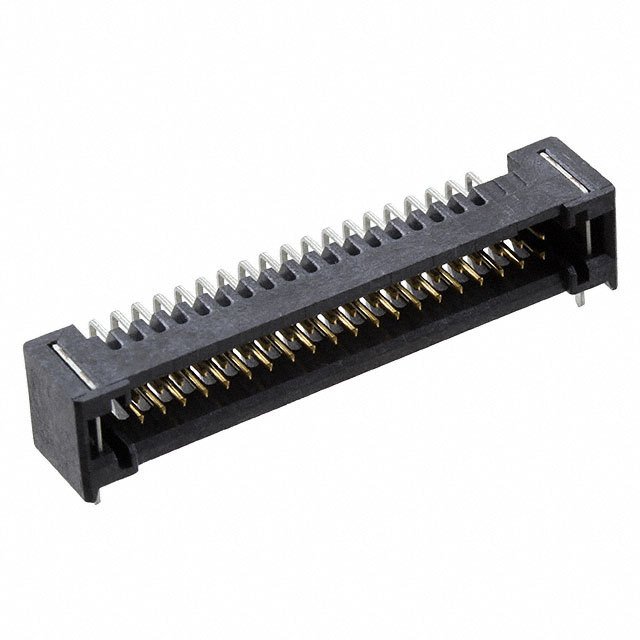

TFM-120-01-S-D-RE2-WT

SAMTEC TFM-120-01-S-D-RE2-WT Board-To-Board Connector, 1.27mm, 40Contacts, Header, TFM Series, Through Hole, 2Rows

Connector Header 40 position 0.050" 1.27mm

得捷:
CONN HEADER R/A 40POS 1.27MM

艾睿:
Reduce safety concerns with this shrouded TFM-120-01-S-D-RE2-WT header connector from Samtec which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 1.27 mm. This is a 2-row connector. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. TFM-120-01-S-D-RE2-WT is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 32.08 mm long, 6.48 mm tall and 8 mm deep.

Newark:
# SAMTEC  TFM-120-01-S-D-RE2-WT  Board-To-Board Connector, 1.27 mm, 40 Contacts, Header, TFM Series, Through Hole, 2 Rows
