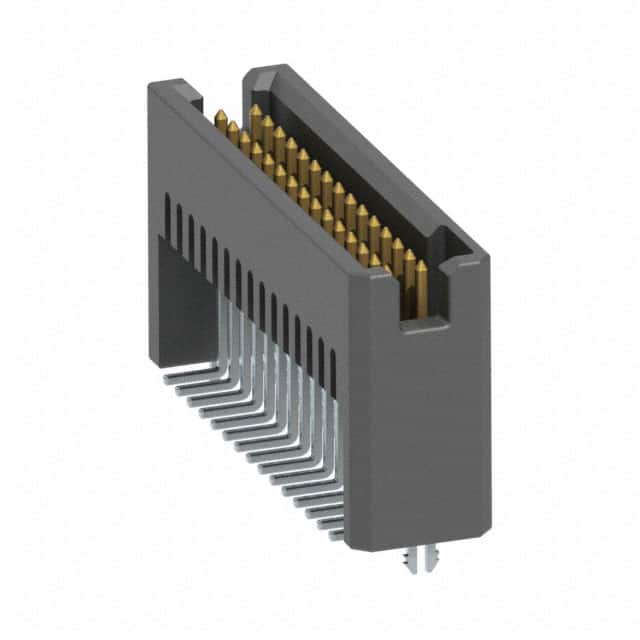

TFM-115-32-S-D-LC

SAMTEC TFM-115-32-S-D-LC Wire-To-Board Connector, 1.27mm, 30Contacts, Header, TFM Series, Surface Mount, 2Rows

Connector Header Surface Mount 30 position 0.050" 1.27mm

得捷:
CONN HEADER 30POS 1.27MM GLD PCB

艾睿:
As an added safety precaution, the shrouded TFM-115-32-S-D-LC header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 30 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This is a 2-row connector. Its pitch is 1.27 mm. It has a header type gender. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -55 to 125 °C. TFM-115-32-S-D-LC is housed in black liquid crystal polymer. It uses the solder termination method. This product is 22.23 mm long, 11.18 mm tall and 5.72 mm deep.

安富利:
Conn Shrouded Header HDR 30 POS 1.27mm Solder ST SMD Tube

Newark:
# SAMTEC  TFM-115-32-S-D-LC  Wire-To-Board Connector, 1.27 mm, 30 Contacts, Header, TFM Series, Surface Mount, 2 Rows
