TSM-108-01-T-SV-P-TR

SAMTEC TSM-108-01-T-SV-P-TR Board-To-Board Connector, 2.54mm, 8Contacts, Header, TSM Series, Surface Mount, 1Rows

针座 表面贴装型 8 位置 0.100"（2.54mm）

欧时:
.100" SMD HDR 1Row

得捷:
CONN HEADER SMD 8POS 2.54MM

艾睿:

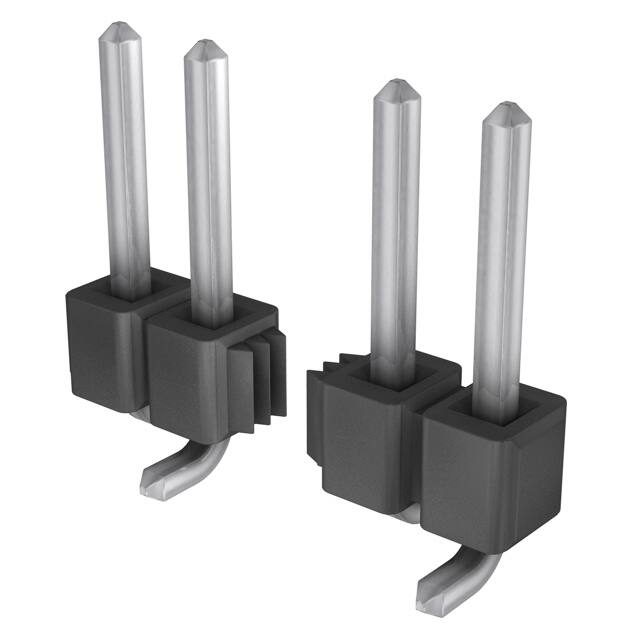

As an added safety precaution, the unshrouded TSM-108-01-T-SV-P-TR header connector from Samtec will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a header type gender. It has a maximum voltage rating of 475 VAC. This is a 1-row connector. This device has a maximum current rating of 5.4 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It uses the solder termination method. TSM-108-01-T-SV-P-TR is housed in black liquid crystal polymer. This product is 20.32 mm long, 9.65 mm tall and 4.82 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Unshrouded Header HDR 8 POS 2.54mm Solder ST SMD T/R

Newark:
# SAMTEC  TSM-108-01-T-SV-P-TR  Board-To-Board Connector, 2.54 mm, 8 Contacts, Header, TSM Series, Surface Mount, 1 Rows
