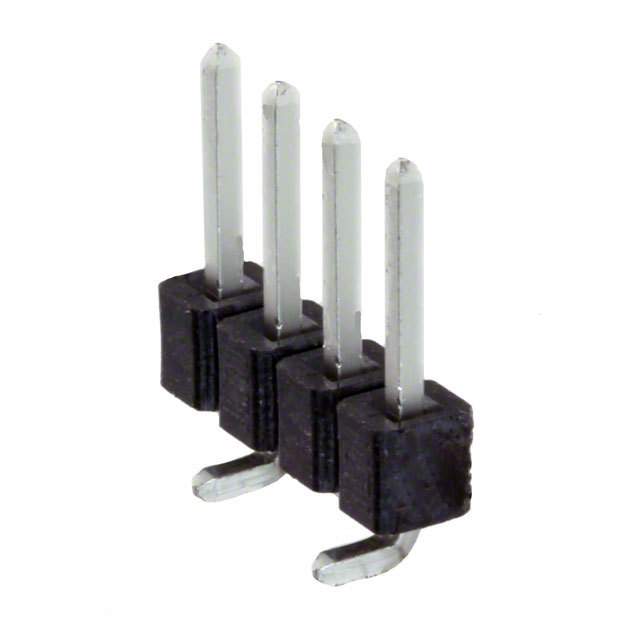

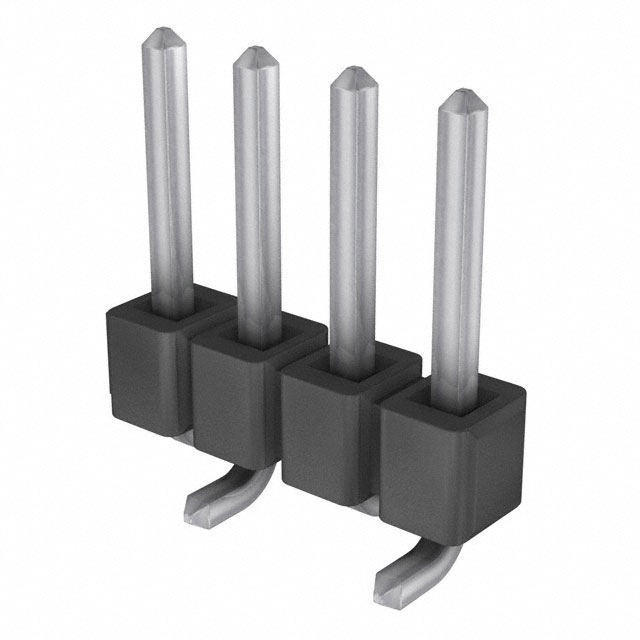

Board Connector, 4Contacts, 1 Rows, Male, Straight, 0.1inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT
The TSM series from are surface mount terminal strip headers. These are unshrouded headers with 0.25" 0.635mm square post and mates with Samtec SSW, SSQ, SSM, BSW, ESW, ESQ, BCS, SLW, CES, HLE, IDSS, IDSD, SMSD and SMSS series of connectors. There is choice of standard post heights which provides solution to mate with any Samtec sockets.
- .
- Pitch spacing is 2.54mm 2 to 36 contacts per row with single row vertical pin -SV
- .
- High operating temperature range of -55°C to 105°C for matte tin plated contacts
- .
- Contact material is phosphor bronze
- .
- Black liquid crystal polymer insulator material
- .
- Suitable for board stacking
- .
- Complies with UL E111594 and CSA 090871_0_000 standards
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
TSM-104-01-T-SV-P-TR Samtec 申泰电子 | 当前型号 | 当前型号 |
TSM-104-01-T-SV 申泰电子 | 完全替代 | TSM-104-01-T-SV-P-TR和TSM-104-01-T-SV的区别 |
