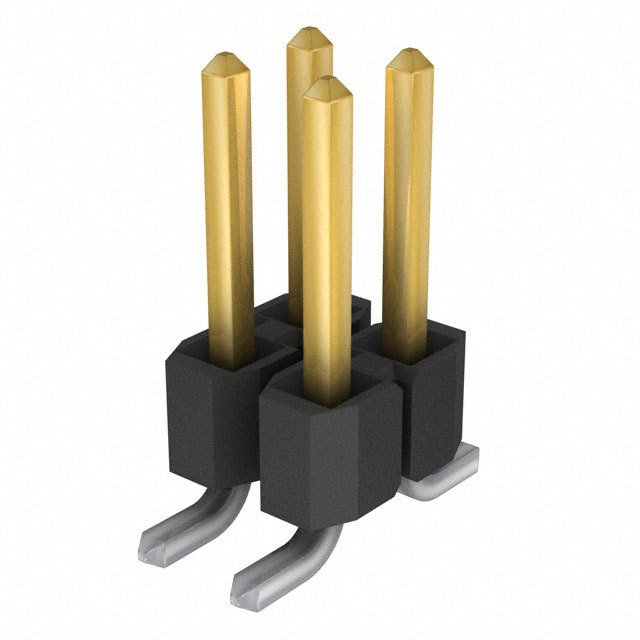

TSM-102-01-S-DV-P-TR

SAMTEC TSM-102-01-S-DV-P-TR Board-To-Board Connector, 2.54mm, 4Contacts, Header, TSM Series, Surface Mount, 2Rows

针座 表面贴装型 4 位置 0.100"（2.54mm）

欧时:
.100" Surface Mount Terminal Strip

得捷:
CONN HEADER 4POS .100" DBL SMD

艾睿:
Make strong and binding connections on your circuit boards by adopting this unshrouded TSM-102-01-S-DV-P-TR connector from Samtec. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a maximum voltage rating of 475 VAC. This is a 2-row connector. It has a header type gender. This device has a maximum current rating of 5.4 A/contact. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. TSM-102-01-S-DV-P-TR is housed in black liquid crystal polymer. This product is 5.08 mm long, 9.65 mm tall and 7.36 mm deep.

安富利:
Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST SMD T/R

Newark:
# SAMTEC  TSM-102-01-S-DV-P-TR  Board-To-Board Connector, 2.54 mm, 4 Contacts, Header, TSM Series, Surface Mount, 2 Rows
